SKU: NTB.130170

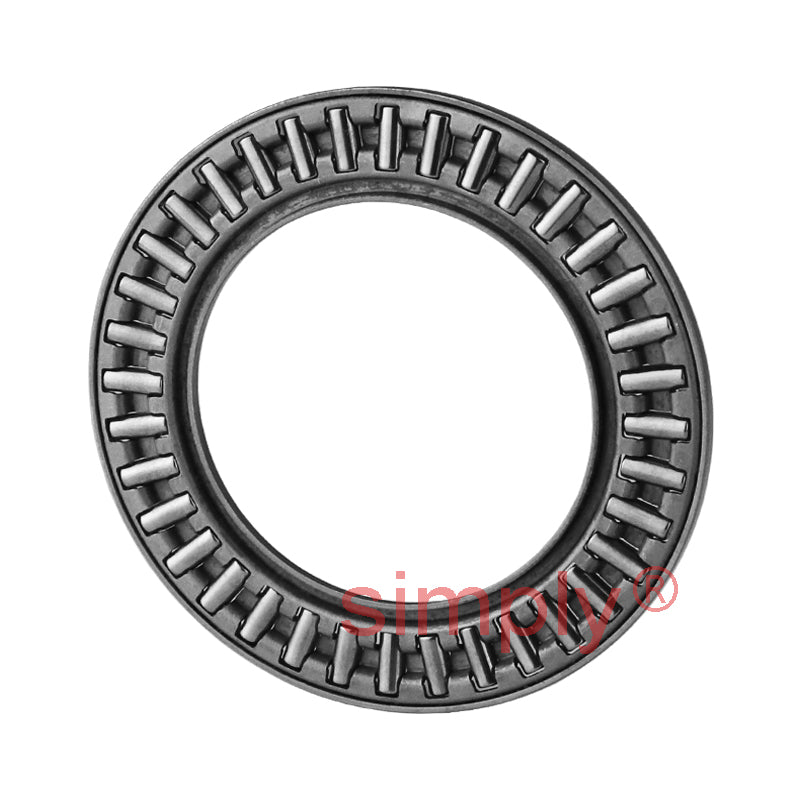

NTB130170 Needle Roller Thrust Bearing Cage Only 130x170x5mm
NTB130170 Needle Roller Thrust Bearing Cage Only 130x170x5mm
Equivalent to: AXK130170
Out of stock
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 5mm
Technical
Technical
| D | 170mm |
|---|---|
| Dw | 5mm |
| d | 130mm |
| Dynamic Load Cor | 120000 N |
| Static Load Cr | 839000 N |
| Weight | 0.225 kg |
