SKU: NTA5266

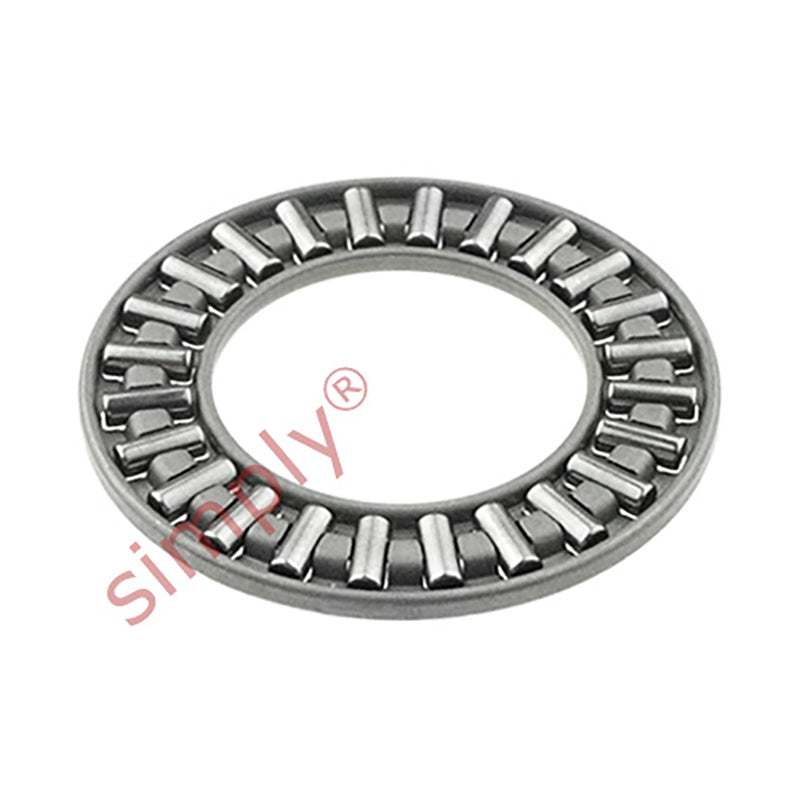

NTA5266 Needle Roller Cage Only 3.25x4.125x0.125 inch
NTA5266 Needle Roller Cage Only 3.25x4.125x0.125 inch
Equivalent to: NTC5266
Out of stock
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 104.78mm = 4.125 (4-1/8) inch
- Width:
- 3.18mm = 0.125 (1/8) inch
Technical
Technical
| d | 3.25 inch |
|---|---|
| D | 4.125 inch |
| Eb | 0.125 inch |
| Dw | 3.96 inch |
| dw | 3.36 inch |
| Dynamic load | 51.60 kN |
| Static load | 294.90 kN |
| Limiting speed | 4000 rpm |
| Weight | 0.041768 kg |
