SKU: NTA512-MB

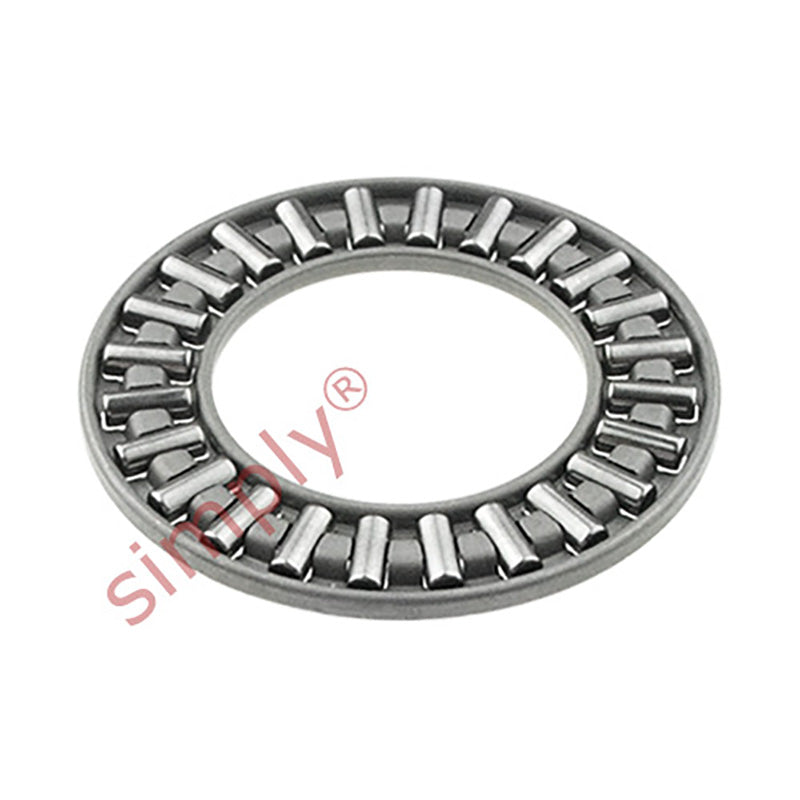

Major Brand NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
Major Brand NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
Equivalent to: NTC512
Out of stock
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 1.98mm = 0.078 (5/64) inch
Technical
Technical
| d | 0.312 inch |
|---|---|
| D | 0.75 inch |
| Eb | 0.0781 inch |
| Dw | 0.64 inch |
| dw | 0.40 inch |
| Dynamic load | 5.83 kN |
| Static load | 13.17 kN |
| Limiting speed | 24000 rpm |
| Weight | 0.001816 kg |
