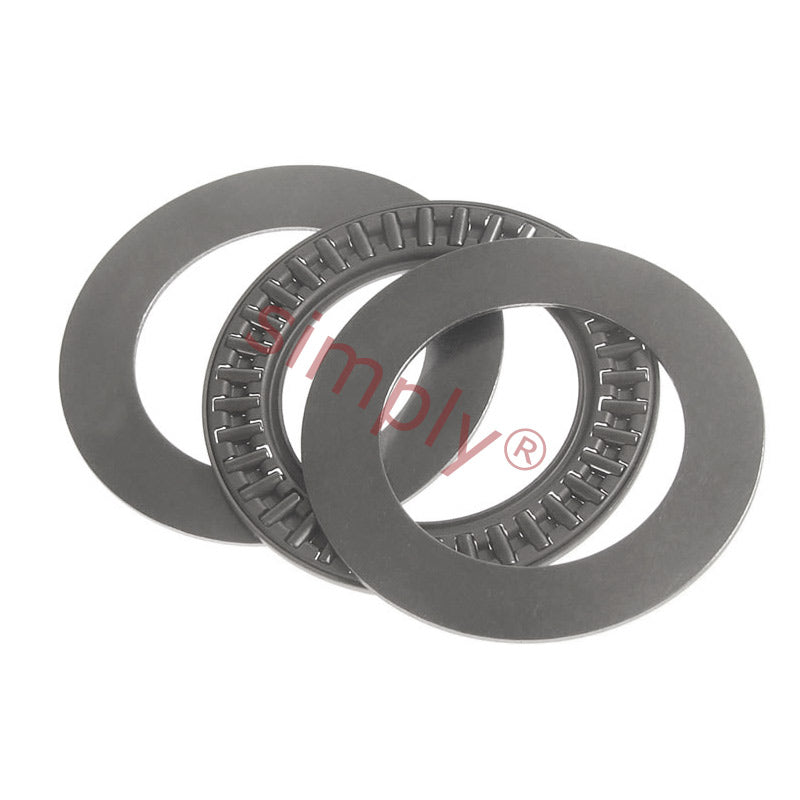

Major Brand NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
Major Brand NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
Equivalent to: NTC4860+TRA4860
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 3 inch |
|---|---|
| D | 3.75 inch |
| Eb | 0.0806 inch |
| Dw | 3.09 inch |
| dw | 3.57 inch |
| Dynamic load | 26.96 kN |
| Static load | 172.10 kN |
| Limiting speed | 4400 rpm |
| Weight | 0.021792 kg |
| Washer | Dimensions |
| d | 3.000 inch |
| d1 | 3.75 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 2.997 inch |
| Pilot max | 3.000 inch |
| Dia to clear washer | 3.781 inch |
| Weight | 0.034 lbs |
