SKU: NTA3446-TRA3446-MB

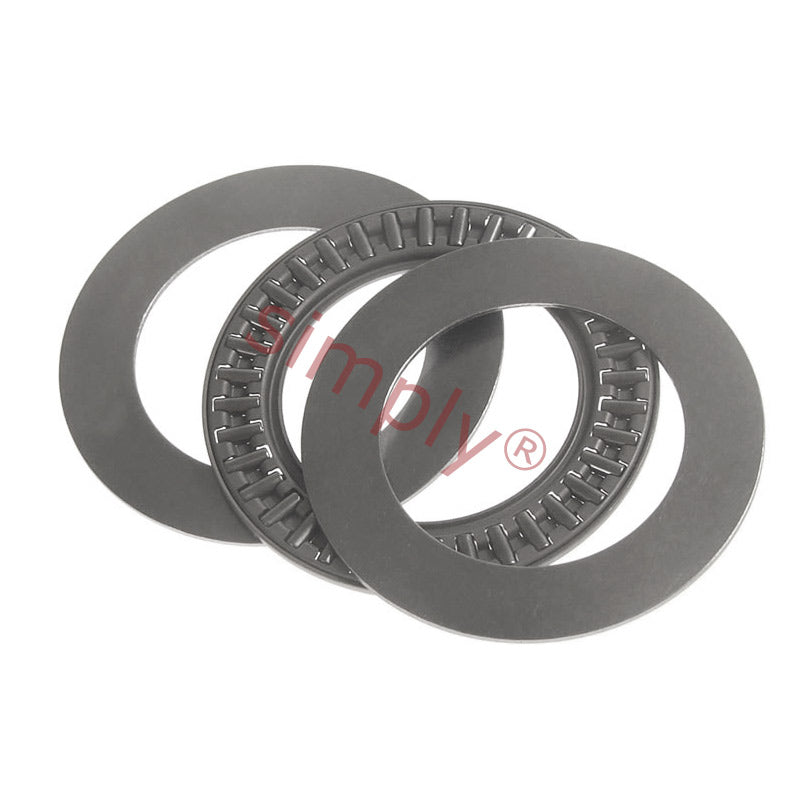

Major Brand NTA3446 Needle Roller Cage Thrust Assembly with 2 TRA3446 Washers 2.125x2.875x0.1406 inch
Major Brand NTA3446 Needle Roller Cage Thrust Assembly with 2 TRA3446 Washers 2.125x2.875x0.1406 inch
Equivalent to: NTC3446+TRA3446
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 2.125 inch |
|---|---|
| D | 2.875 inch |
| Eb | 0.0806 inch |
| Dw | 2.22 inch |
| dw | 2.70 inch |
| Dynamic load | 24.42 kN |
| Static load | 137.45 kN |
| Limiting speed | 5800 rpm |
| Weight | 0.016344 kg |
| Washer | Dimensions |
| d | 2.125 inch |
| d1 | 2.875 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 2.122 inch |
| Pilot max | 2.125 inch |
| Dia to clear washer | 2.906 inch |
| Weight | 0.026 lbs |
