SKU: NTA2435-TRA2435-MB

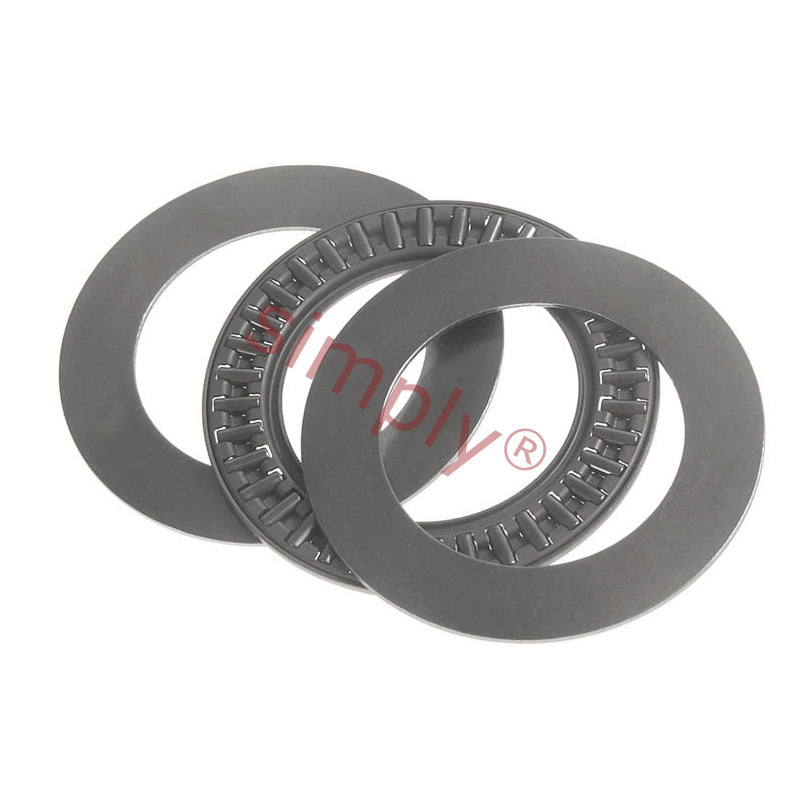

Major Brand NTA2435 Needle Roller Cage Thrust Assembly with 2 TRA2435 Washers 1.5x2.187x0.1406 inch
Major Brand NTA2435 Needle Roller Cage Thrust Assembly with 2 TRA2435 Washers 1.5x2.187x0.1406 inch
Equivalent to: NTC2435+TRA2435
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 1.5 inch |
|---|---|
| D | 2.187 inch |
| Eb | 0.0806 inch |
| Dw | 1.59 inch |
| dw | 2.07 inch |
| Dynamic load | 23.22 kN |
| Static load | 117.88 kN |
| Limiting speed | 7600 rpm |
| Weight | 0.01135 kg |
| Washer | Dimensions |
| d | 1.500 inch |
| d1 | 2.187 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 1.497 inch |
| Pilot max | 1.500 inch |
| Dia to clear washer | 2.219 inch |
| Weight | 0.017 lbs |
