SKU: NP2.1/8DEC-RHP

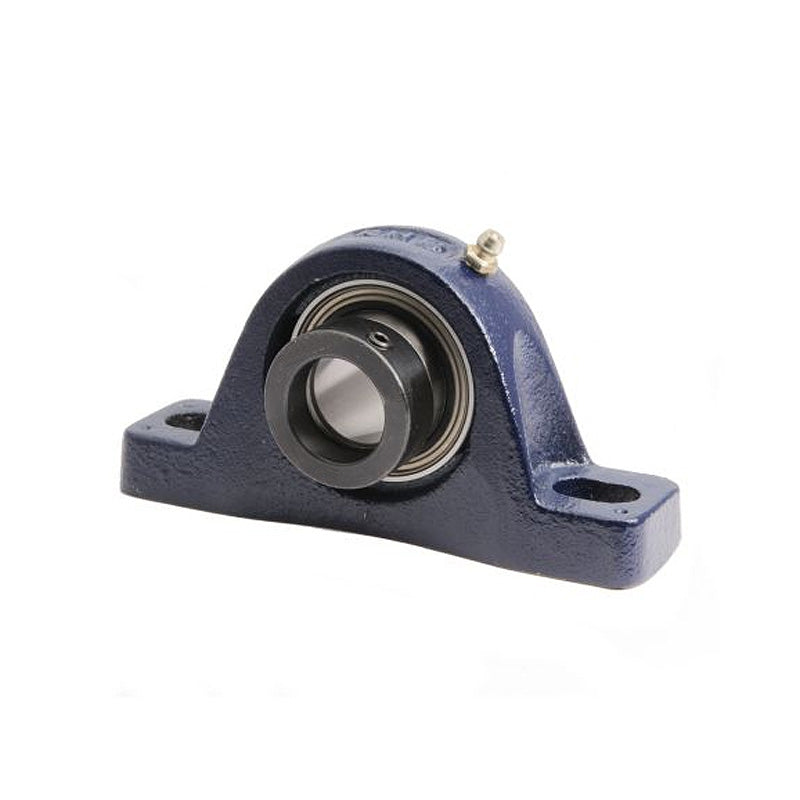

RHP NP2-1/8DEC Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Eccentric Collar Full Width Insert

RHP NP2-1/8DEC Two Bolt Cast Iron Pillow Block and 2-1/8 Bore Eccentric Collar Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/8 inch
L 8.641 inch
H 2.5 inch
H1 0.976 inch
H2 5.098 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-1/8DECG+insonly">1055-2-1/8DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
