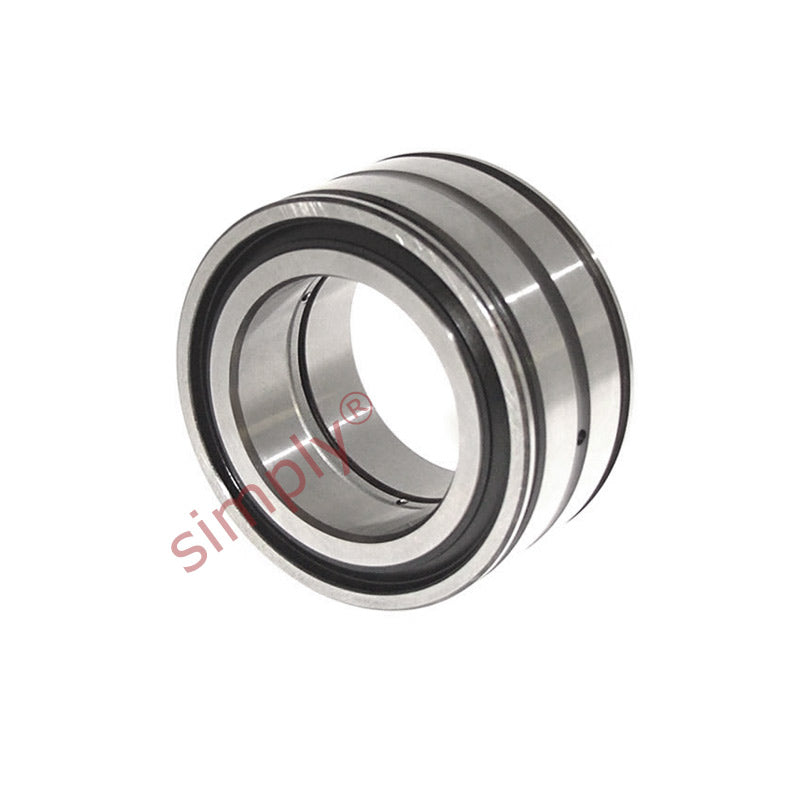

SKF NNF5048ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 240x360x160mm

Name: SKF NNF5048ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 240x360x160mm
Brand: SKF
SKU: NNF5048ADA-2LSV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 240mm
Outside Diameter:: 360mm
Width:: 160mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	240mm
D	360mm
B	160mm
C	159mm
Dynamic load C	1680 kN
Static load Co	3350 kN
Fatigue load limit Pu	335 kN
Limiting speed	340 rpm
Weight	57.5 kg
d1	283mm
D1	354mm
E	327.5mm
C1+0.2	138.2mm
C2	10.4mm
b	6.3mm
b1	9.4mm
K	6mm
r min	2mm
r3r4 min	1mm
da min	247mm
das	275mm
Da max	354mm
Ca1 - 0.2	130mm
Ca2 - 0.2	126mm
ra max	2mm
rb max	1mm
Snap ring	SW360
Din 471	360x6
