SKU: NNCF5006CV-SKF

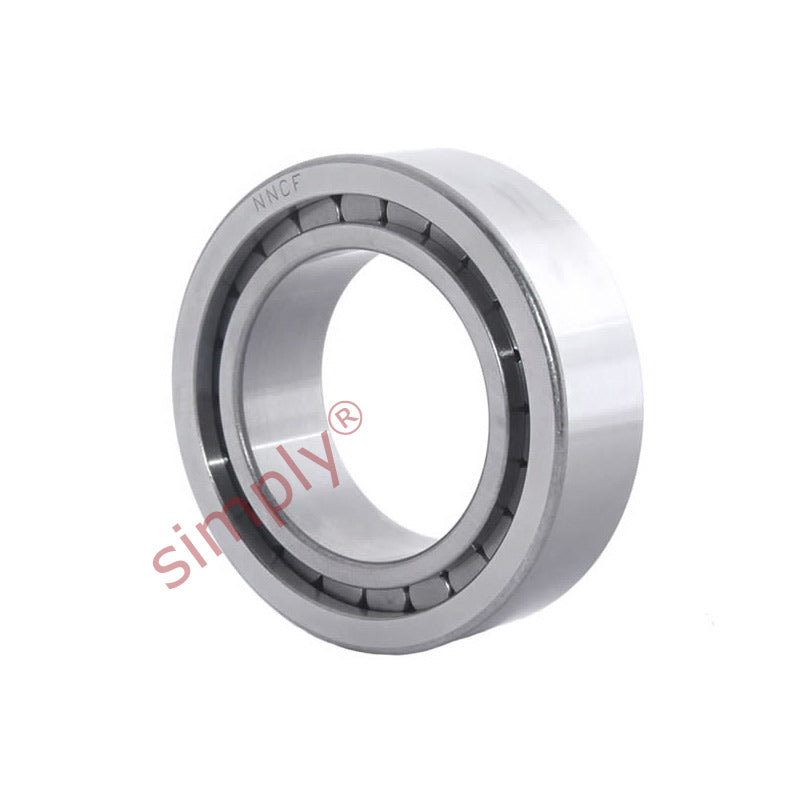

SKF NNCF5006CV Double Row Full Complement Cylindrical Roller Bearing 30x55x34mm
SKF NNCF5006CV Double Row Full Complement Cylindrical Roller Bearing 30x55x34mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 34mm |
| Dynamic load C | 73.7 Kn |
| Static load Co | 88 Kn |
| Fatigue load limit Pu | 10 Kn |
| Reference speed | 6000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.35 kg |
| d1 | 40mm |
| D1 | 45.3mm |
| E | 49.6mm |
| b1 | 4.5mm |
| K | 3mm |
| r1r2 min | 1mm |
| S | 1.5mm |
| da min | 34.6mm |
| das | 34.6mm |
| Da max | 50.4mm |
| Ra max | 1mm |
