SKU: NK73/35-EU
NK73/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 73x90x35mm
NK73/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 73x90x35mm
Regular price
€65,35
ex VAT
Regular price
Sale price
€65,35
ex VAT
In stock
Price Break
10+
€49,77
19+
€46,97
29+
€46,41
39+
€45,86
49+
€45,30
74+
€44,74
99+
€41,94
199+
€41,38
249+
€40,82
499+
€40,26
999+
€39,14
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 73mm
- Outside Diameter:
- 90mm
- Width:
- 35mm
Technical
Technical

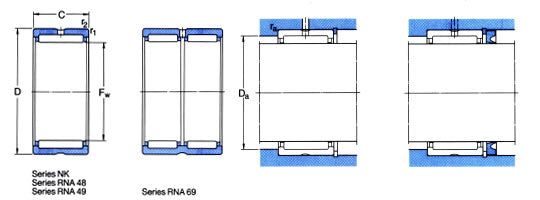

| Fw | 73mm |
|---|---|
| D | 90mm |
| C | 35mm |
| Dynamic load C | 73700 N |
| Static load Co | 163000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| r1r2 | 1mm |
| Da max | 85mm |
| ra max | 1mm |
| Weight | 430 g |
