SKU: NJ309-E-TVP2-C3+HJ309-E

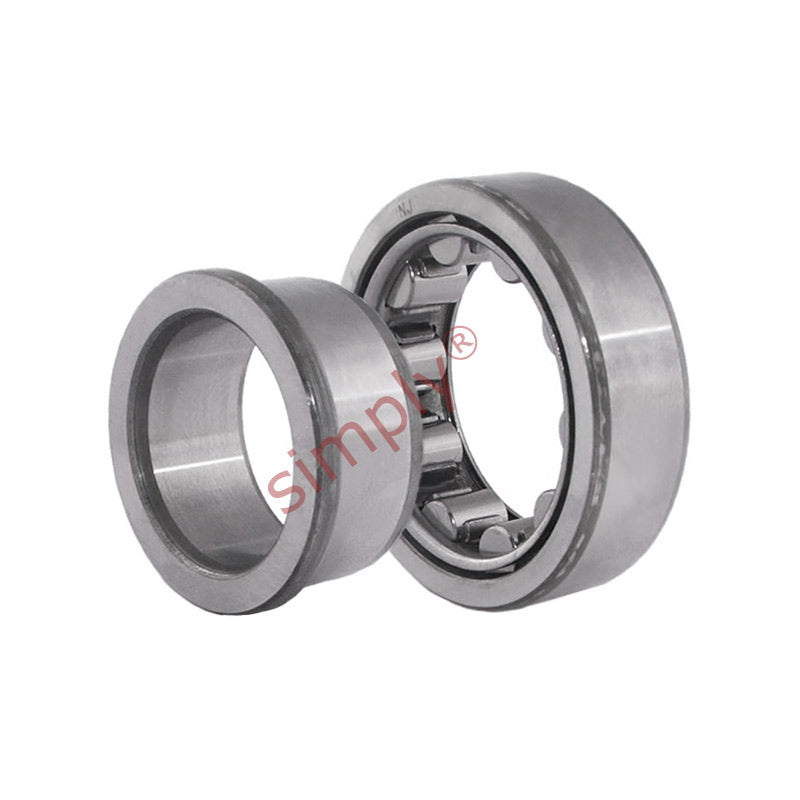

NJ309-E-TVP2-C3 + HJ309-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 45x100x25mm
NJ309-E-TVP2-C3 + HJ309-E X-life Cylindrical Roller Bearing with Cage and L-section Ring 45x100x25mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45 |
|---|---|
| D | 100 |
| B | 25 |
| r min | 1.5 |
| r1 min | 1.5 |
| E | 88.5 |
| F | 58.5 |
| D1 | 84.1 |
| d1 | 64.4 |
| B1 | 7 |
| B2 | 11.5 |
| da min | 54 |
| dc min | 66 |
| Da max | 91 |
| ra max | 1.5 |
| Dynamic load | 115000 N |
| Static load | 98000 N |
| Fatigue limit load | 16400 N |
| Limiting speed | 6700 rpm |
| Reference speed | 6500 rpm |
| L-section ring | HJ309-E |
| Bearing weight | 0.913 kg |
| L-section ring weight | 0.109 kg |
