SKU: NJ226-EU

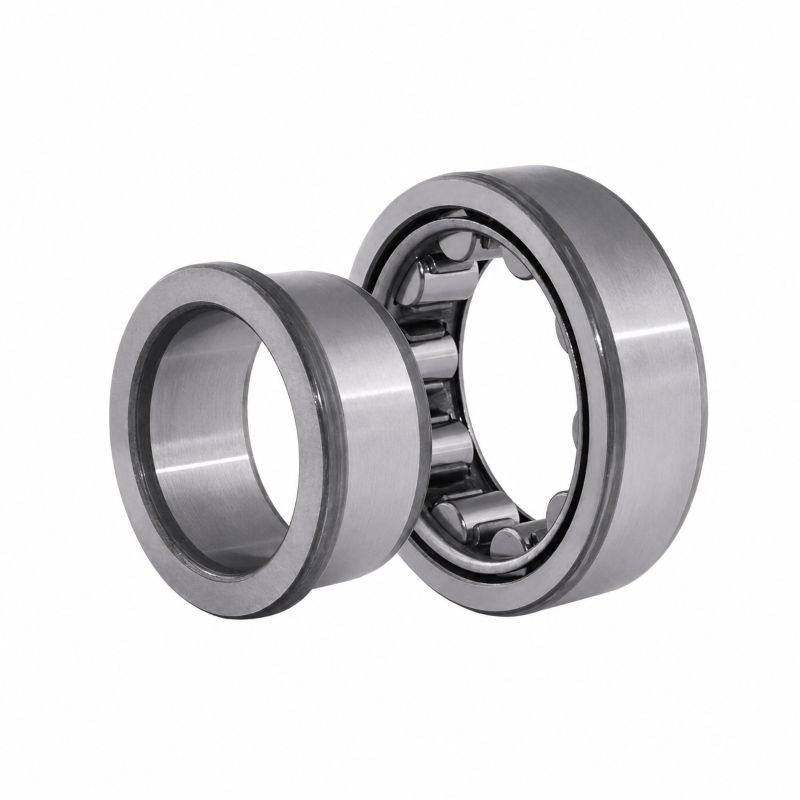

NJ226 Budget Single Row Cylindrical Roller Bearing 130x230x40mm

Name: NJ226 Budget Single Row Cylindrical Roller Bearing 130x230x40mm
Brand: Gen
SKU: NJ226-EU
Price: 343.59 EUR
Availability: InStock

€343,59 ex VAT

Sale Sold out

In stock

Price Break

10+ €261,60

19+ €246,91

29+ €243,97

39+ €241,03

49+ €238,09

74+ €235,15

99+ €220,45

199+ €217,51

249+ €214,57

499+ €211,63

999+ €205,76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 130mm
Outside Diameter:: 230mm
Width:: 40mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	130mm
D	230mm
B	40mm
Dynamic load C	415 kN
Static load Co	455 kN
Fatigue load limit Pu	51 kN
Reference speed	3200 rpm
Limiting speed	3400 rpm
Weight	6.6 kg
Cage options	J.M.ML
d1	164mm
D1	202mm
F, E	153.5mm
r1r2 min	3mm
r3r4 min	3mm
s	2.1mm
da min	144mm
da max	150mm
db min	167mm
Da max	216mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
Angle ring	HJ226EC
Angle ring weight	0.75kg
B1	11mm
B2	17mm
