SKU: NJ2232ECML/C3-SKF

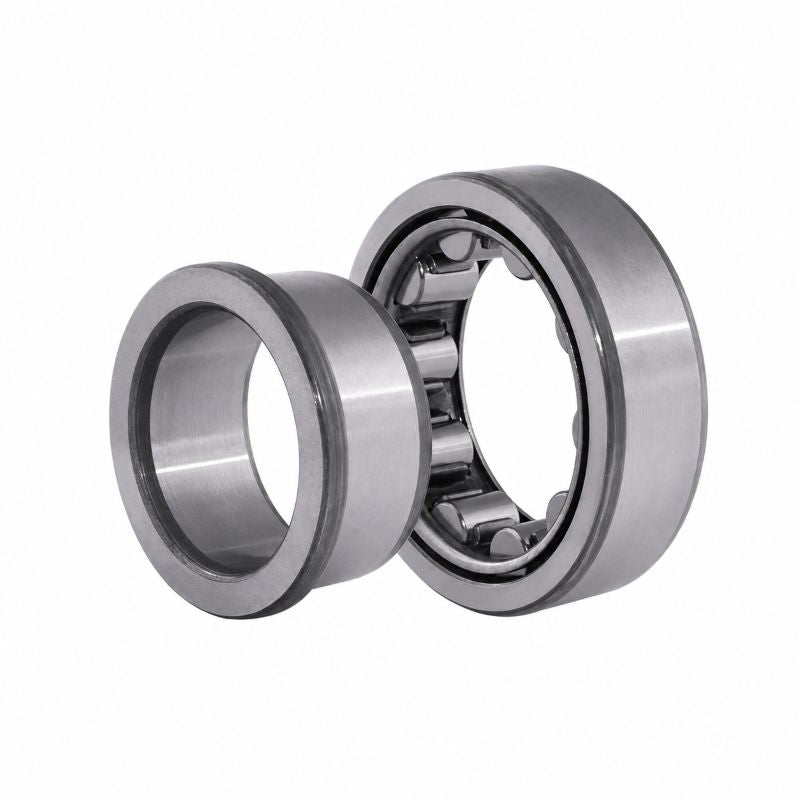

SKF NJ2232ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 160x290x80mm
SKF NJ2232ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 160x290x80mm
Regular price
€1.762,89
ex VAT
Regular price
Sale price
€1.762,89
ex VAT
In stock
Price Break
10+
€1.342,25
19+
€1.266,85
29+
€1.251,76
39+
€1.236,68
49+
€1.221,60
74+
€1.206,52
99+
€1.131,11
199+
€1.116,03
249+
€1.100,95
499+
€1.085,87
999+
€1.055,71
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 290mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 160mm |
|---|---|
| D | 290mm |
| B | 80mm |
| Dynamic load C | 930 kN |
| Static load Co | 1200 kN |
| Fatigue load limit Pu | 129 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 24.8 kg |
| d1 | 205mm |
| D1 | 252mm |
| F,E | 193mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 4.5mm |
| da min | 174mm |
| da max | 188mm |
| db | 209mm |
| Da max | 276mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.2 |
| Angle ring | HJ2232EC |
| Angle ring weight | 1.55 kg |
| B1 | 12mm |
| B2 | 24.5mm |
