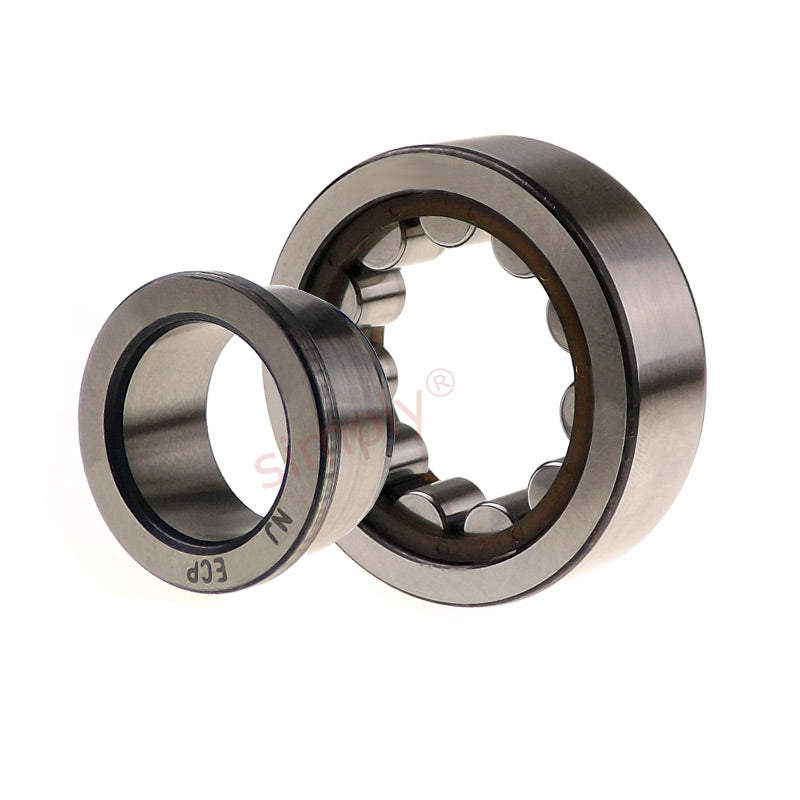

SKF NJ2203ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 17x40x16mm
SKF NJ2203ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 17x40x16mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 16mm |
| Dynamic load C | 23.8 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 2.65 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.093 kg |
| d1 | 25mm |
| D1 | 32.4mm |
| F,E | 22.1mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| S | 1.5mm |
| da min | 21mm |
| da max | 21mm |
| db | 27mm |
| Da max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.2 |
