SKU: NJ1016ECML-EU

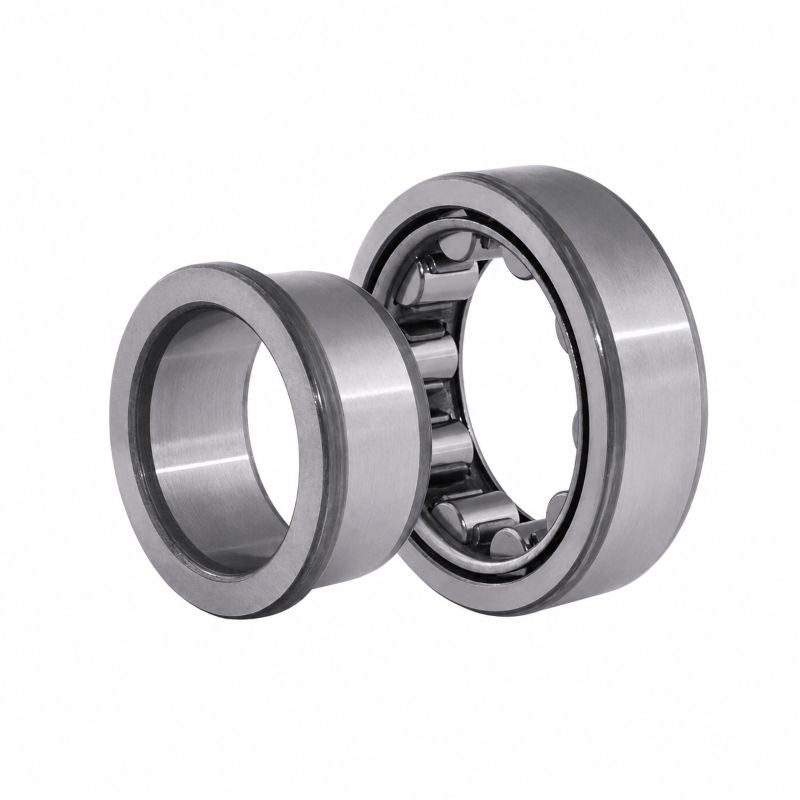

NJ1016 Budget Single Row Cylindrical Roller Bearing 80x125x22mm
NJ1016 Budget Single Row Cylindrical Roller Bearing 80x125x22mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load C | 99 kN |
| Static load Co | 127 kN |
| Fatigue load limit Pu | 16.3 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 9500 rpm |
| Weight | 1.1 kg |
| d1 | 96.2mm |
| D1 | 111mm |
| F, E | 91.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1mm |
| s | 1.5mm |
| da min | 86mm |
| da max | 90mm |
| db min | 94mm |
| Da max | 119mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.1 |
