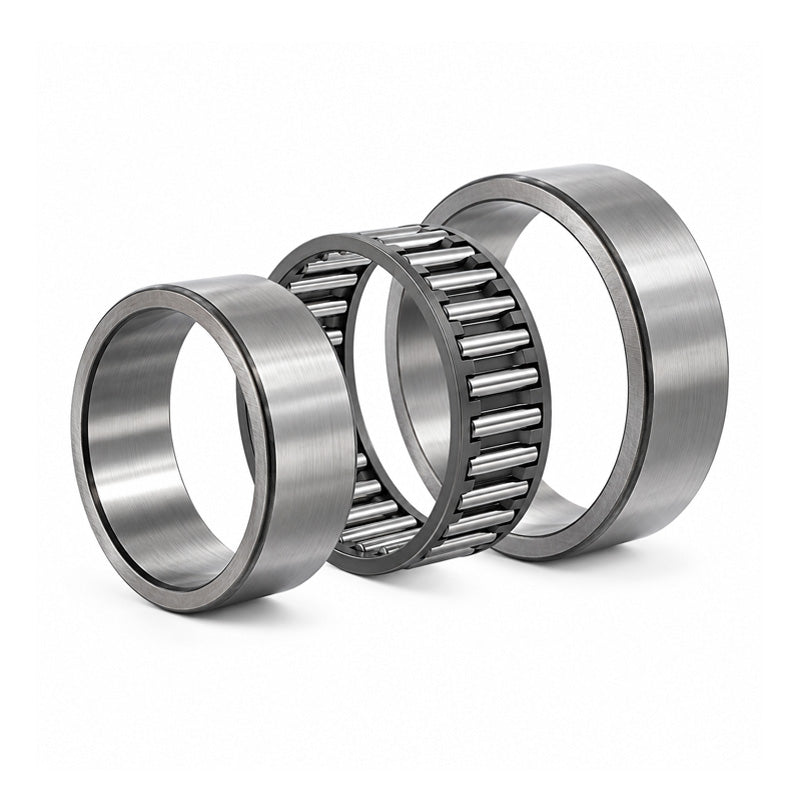

Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring

Name: Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring
Brand: Major Brand
SKU: NAO6x17x10TN-MB
Price: 19.40 EUR
Availability: InStock

€19,40 ex VAT

Sale Sold out

In stock

Price Break

10+ €14,77

19+ €13,94

29+ €13,78

39+ €13,61

49+ €13,45

74+ €13,28

99+ €12,45

199+ €12,28

249+ €12,12

499+ €11,95

999+ €11,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting.
Benefits: Separable, ease of mounting.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 6mm
Outside Diameter:: 17mm
Width:: 10mm

Technical

d	6mm
D	17mm
B	10mm
Dynamic load	4570 N
Static load	5700 N
Fatigue load limit Pu	630 N
Speed in grease	18000 rpm
Speed in oil	28000 rpm
E	13mm
F	10mm
r1r2 min	0.3mm
S (axial disp)	0.5mm
da	12.7mm
db	9.7mm
Da	13.3mm
Db	10.3mm
ra max	0.3mm
Weight	14 g
