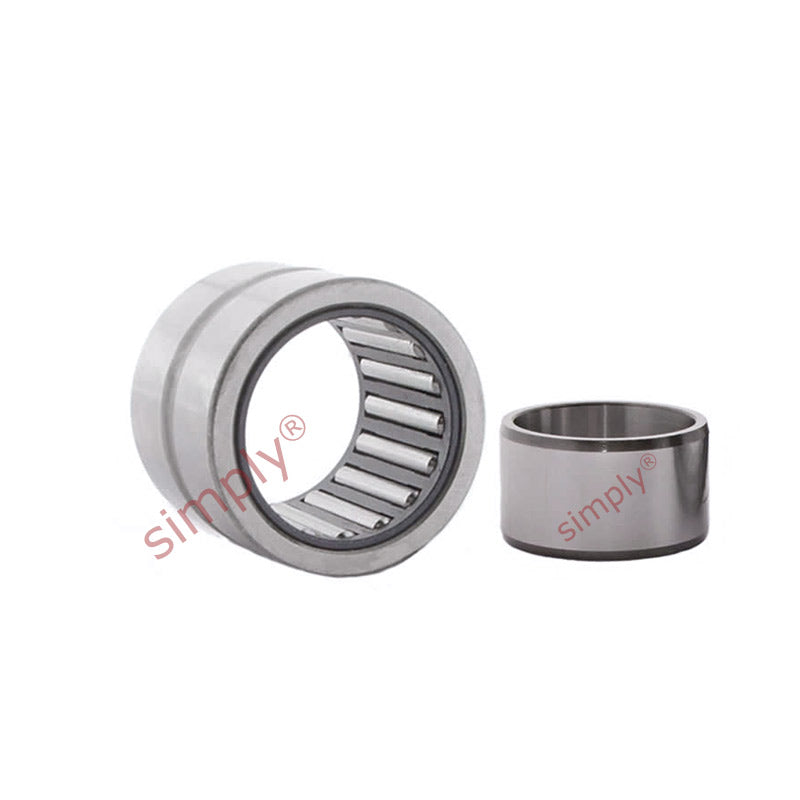

• Major Brand NA4905RS Needle Roller Bearing With Shaft Sleeve and One Rubber Seal 25x42x18mm
1 1

SKU: NA4905RS-MB

Major Brand NA4905RS Needle Roller Bearing With Shaft Sleeve and One Rubber Seal 25x42x18mm

Major Brand NA4905RS Needle Roller Bearing With Shaft Sleeve and One Rubber Seal 25x42x18mm
€40,70 ex VAT
€40,70 ex VAT
Sale Sold out

In stock

Price Break
10+ €30,99
19+ €29,25
29+ €28,90
39+ €28,55
49+ €28,20
74+ €27,85
99+ €26,11
199+ €25,77
249+ €25,42
499+ €25,07
999+ €24,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
18mm
Technical
d 25mm
D 42mm
B 18mm
C 17mm
Dynamic load 21600 N
Static load 27500 N
Fatigue load limit Pu 3350 N
Speed in grease 6300 rpm
Speed in oil 6300 rpm
F 30mm
r1r2 0.3mm
S (axial disp) 0.5mm
da min 27mm
Da max 40mm
ra max 0.3mm
