• NA4848 Budget Needle Roller Bearing / Shaft Sleeve 240x300x60mm
1 1

SKU: NA4848-EU

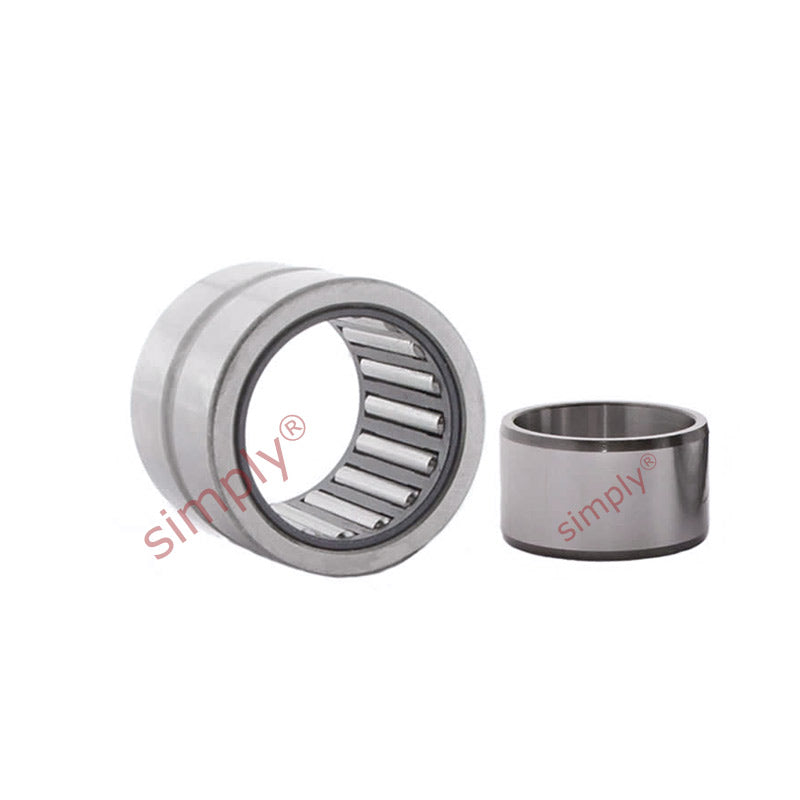

NA4848 Budget Needle Roller Bearing / Shaft Sleeve 240x300x60mm

NA4848 Budget Needle Roller Bearing / Shaft Sleeve 240x300x60mm
€1.495,39 ex VAT
€1.495,39 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.138,58
19+ €1.074,62
29+ €1.061,83
39+ €1.049,03
49+ €1.036,24
74+ €1.023,45
99+ €959,48
199+ €946,69
249+ €933,89
499+ €921,10
999+ €895,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
240mm
Outside Diameter:
300mm
Width:
60mm
Technical
d 240mm
D 300mm
B 60mm
Dynamic load C 347000 N
Static load Co 1120000 N
Fatigue load limit Pu 108000 N
Speed in grease 950 rpm
Speed in oil 1500 rpm
F 265mm
r1r2 2mm
S (axial disp) 2mm
da min 249mm
Da max 291mm
ra max 2mm
