SKU: N900-SKF

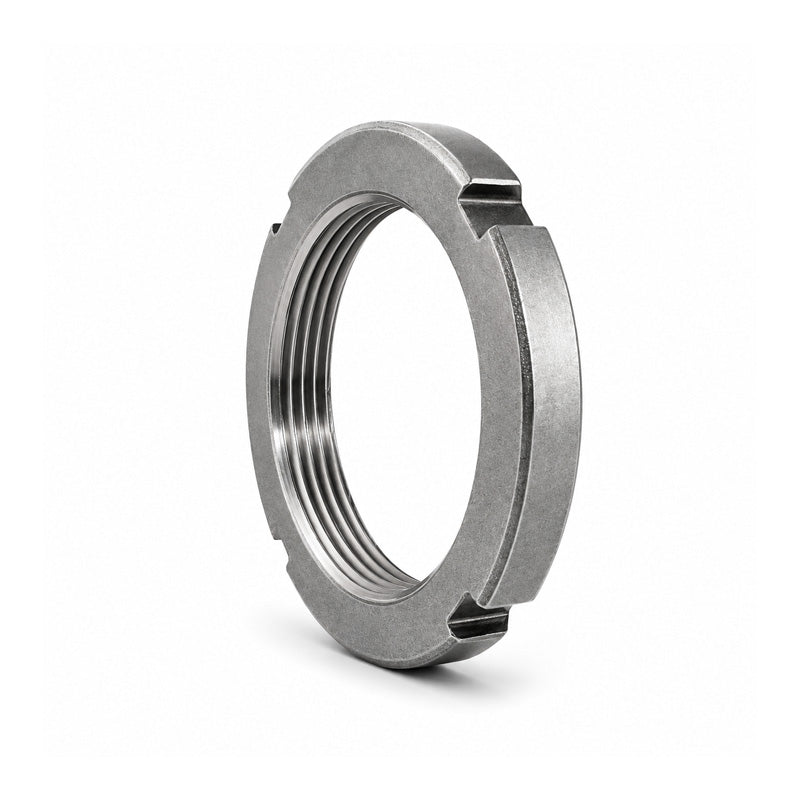

SKF N900 Lock Nut (Lock Washer Type) 35.441x38.375x40.568 inch
SKF N900 Lock Nut (Lock Washer Type) 35.441x38.375x40.568 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low profile lock nuts are commonly used with bearings in the 23048, 23148 and 23248 series and larger.
Benefits: Efficient, secure, inexpensive, removable and re-useable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 35.441 inch
Technical
Technical
| G | 35.441 inch |
|---|---|
| Threads per inch | 3 |
| d<sub>1</sub> | 38.375 inch |
| d<sub>2</sub> | 38.61 inch |
| d<sub>3</sub> max | 40.568 inch |
| B | 3.953 inch |
| B<sub>5</sub> | 4.624 inch |
| b | 2.48 inch |
| h | 1.01 inch |
| Mass | 152.8606 kg |
| Associated locking device | PL900 |
| Hexagonal head bolt | 3/4-10x1-1/2 |
