SKU: N334ECM-EU

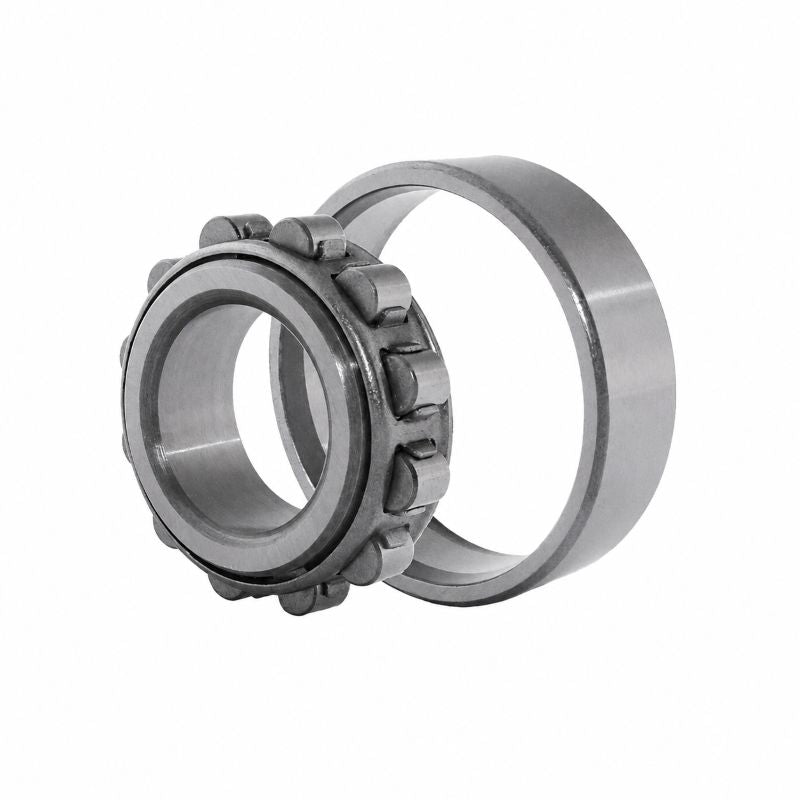

N334 Budget Single Row Cylindrical Roller Bearing 170x360x72mm
N334 Budget Single Row Cylindrical Roller Bearing 170x360x72mm
Out of stock
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 360mm
- Width:
- 72mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 360mm |
| B | 72mm |
| Dynamic load C | 952 kN |
| Static load Co | 1180 kN |
| Fatigue load limit Pu | 116 kN |
| Reference speed | 1700 rpm |
| Limiting speed | 2200 rpm |
| Weight | 38.5 kg |
| d1 | 236mm |
| F, E | 318mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| s | 4.6mm |
| da min | 187mm |
| da max | 313mm |
| db min | 323mm |
| Da max | 343mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
