SKU: N219ECP/C3-SKF

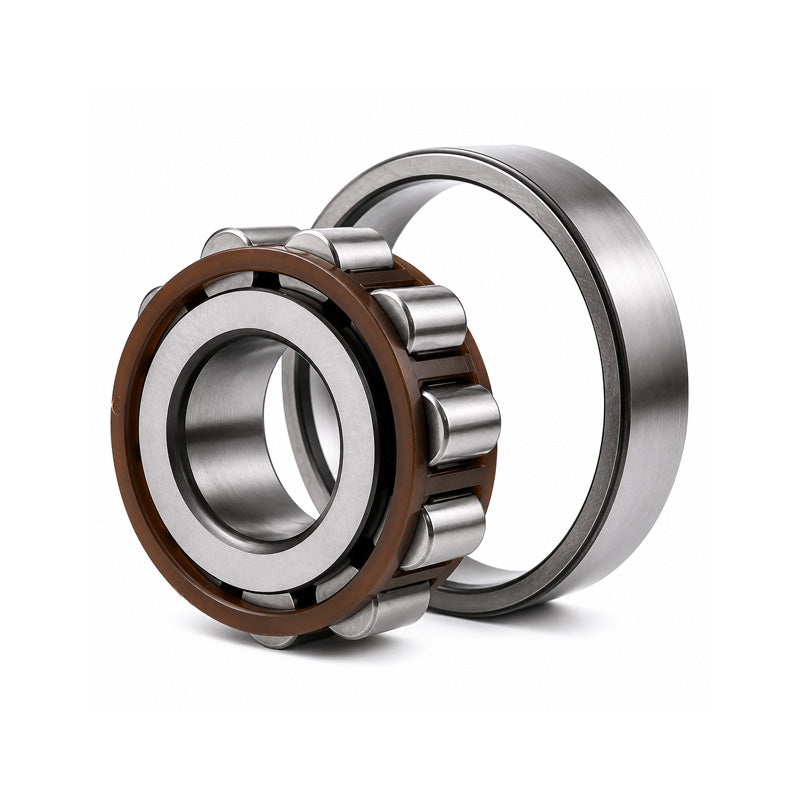

SKF N219ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
SKF N219ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
Out of stock
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| Dynamic load C | 255 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 32.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 2.85 kg |
| d1 | 120mm |
| F,E | 154.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.7mm |
| da min | 107mm |
| da max | 152mm |
| db | 157mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
