SKU: N213-E-TVP2-C3

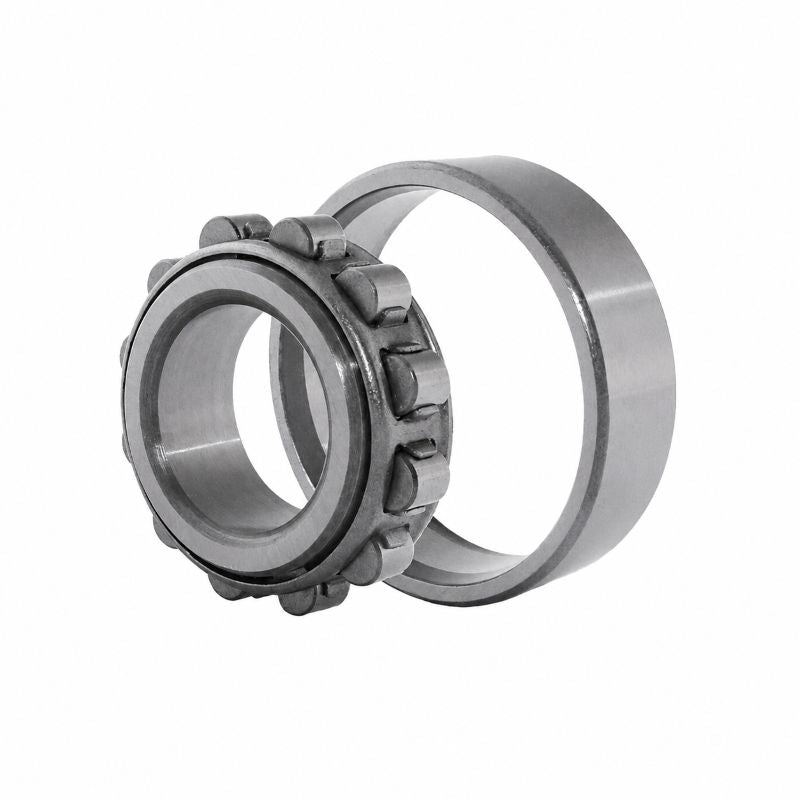

N213-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 65x120x23mm
N213-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 65x120x23mm
Out of stock
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical

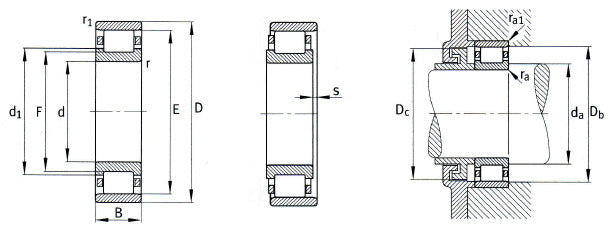

| d | 65 |
|---|---|
| D | 120 |
| B | 23 |
| r min | 1.5 |
| r1 min | 1.5 |
| s | 1.4 |
| E | 108.5 |
| F | 78.5 |
| d1 | 84.4 |
| da min | 74 |
| Da max | 111 |
| Db min | 110 |
| Dc max | 107 |
| ra max | 1.5 |
| ra1 max | 1.5 |
| Dynamic load | 127000 N |
| Static load | 119000 N |
| Fatigue limit load | 19800 N |
| Limiting speed | 6000 rpm |
| Reference speed | 5000 rpm |
| Weight | 1.05 kg |
