SKU: N1400-312SS

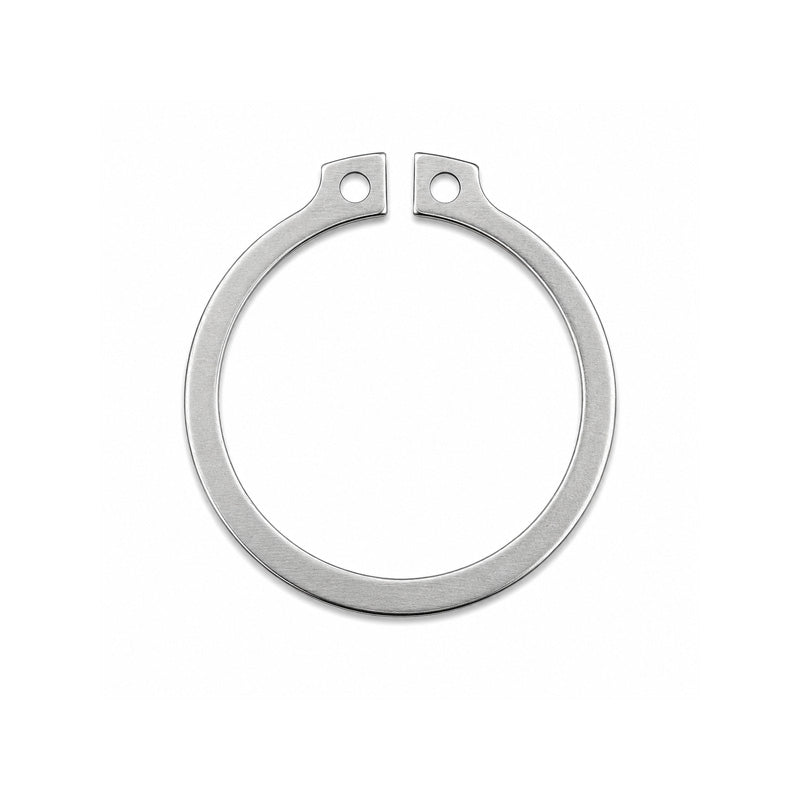

Stainless Steel External Circlip for 3.12 inch Shaft Diameter Un-Sprung Diameter 2.892 inch
Stainless Steel External Circlip for 3.12 inch Shaft Diameter Un-Sprung Diameter 2.892 inch
Equivalent to: N1400-312SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 73.46mm = 2.892 inch
- Material:
- Stainless Steel
- Shaft Size:
- 79.38mm = 3.125 (3-1/8) inch
- Thickness:
- 2.36mm = 0.093 inch
- Groove Diameter:
- 75.11mm = 2.957 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 3.125 inch |
| Ring Thickness (t) | 0.093 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 2.892 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.305 inch |
| Beam (b) | 0.272 inch |
| h | 0.141 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.957 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.103 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.084 inch |
