SKU: N1300-825SS

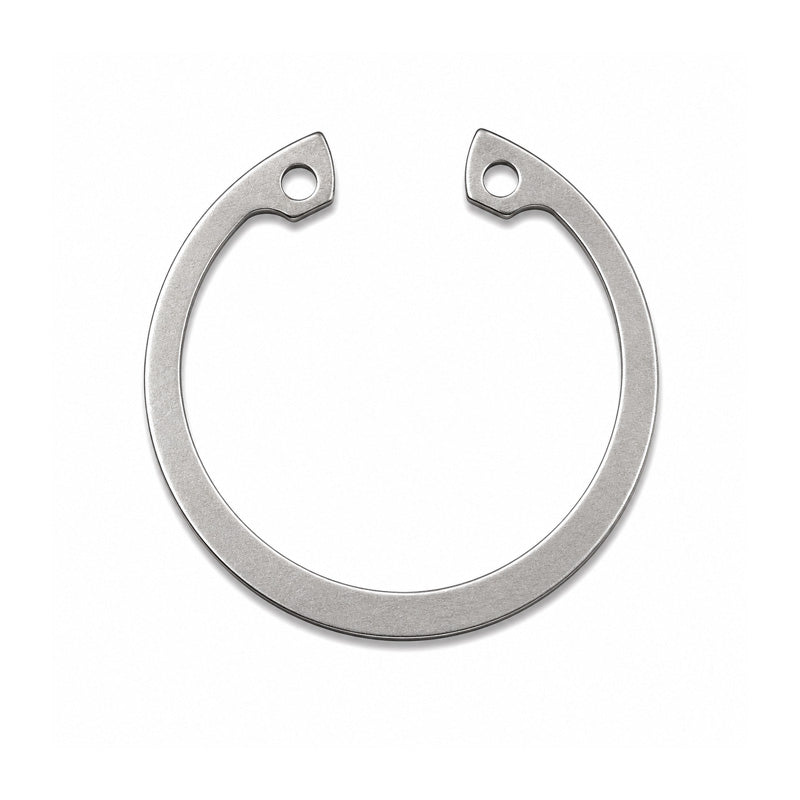

Stainless Steel Internal Circlip for 8.25 inch Bore Diameter Un-Sprung Diameter 9.095 inch
Stainless Steel Internal Circlip for 8.25 inch Bore Diameter Un-Sprung Diameter 9.095 inch
Equivalent to: N1300-825SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 209.55mm = 8.25 (8-1/4) inch
- Outside Diameter:
- 231.01mm = 9.095 inch
- Material:
- Stainless Steel
- Thickness:
- 4.76mm = 0.187 (3/16) inch
- Groove Diameter:
- 218.95mm = 8.62 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 8.250 inch |
| Ring Thickness (t) | 0.187 inch |
| Thickness tolerance (t) | 0.187 inch |
| Unstressed diameter (D) | 9.095 inch |
| Unstressed diameter tolerance (D) | 0.09 inch |
| Lug (L) | 0.6 inch |
| Beam (b) | 0.548 inch |
| h | 0.182 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 8.620 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.209 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.185 inch |
