SKU: N1300-354SS

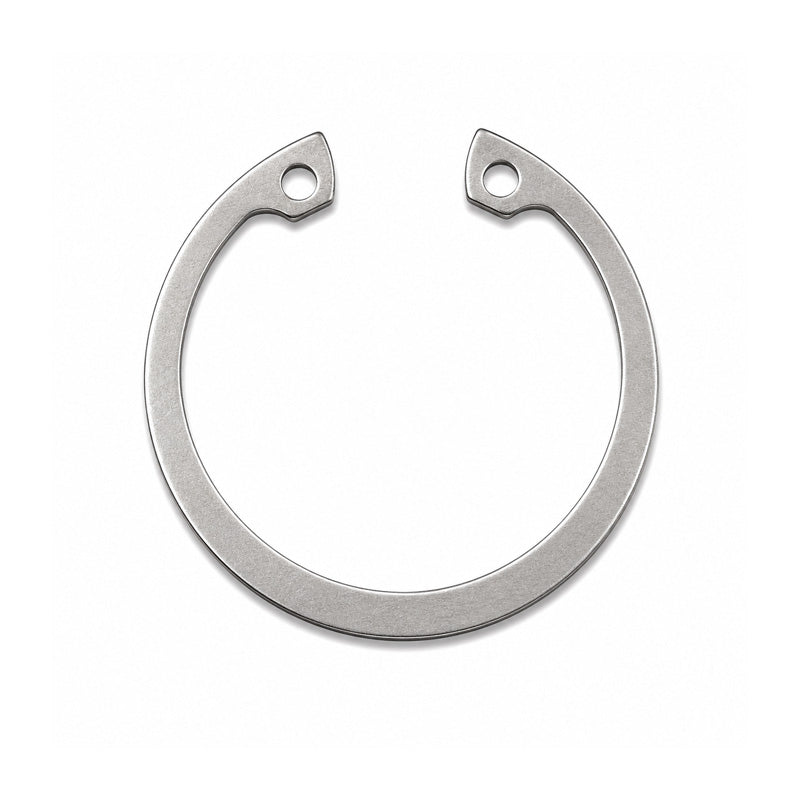

Stainless Steel Internal Circlip for 3.54 inch Bore Diameter Un-Sprung Diameter 3.936 inch
Stainless Steel Internal Circlip for 3.54 inch Bore Diameter Un-Sprung Diameter 3.936 inch
Equivalent to: N1300-354SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 89.99mm = 3.543 inch
- Outside Diameter:
- 99.97mm = 3.936 inch
- Material:
- Stainless Steel
- Thickness:
- 2.78mm = 0.109 (7/64) inch
- Groove Diameter:
- 95.91mm = 3.776 inch
Technical
Technical

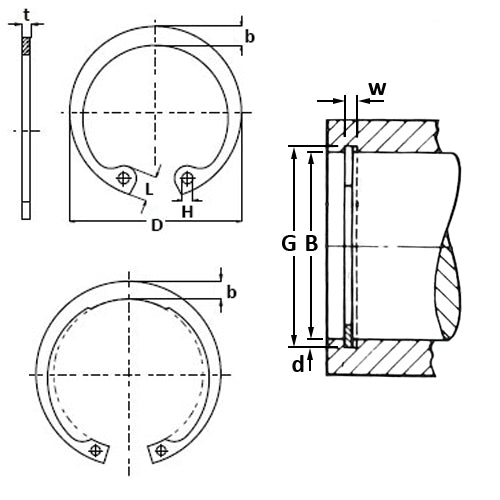

| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 3.543 inch |
| Ring Thickness (t) | 0.109 inch |
| Thickness tolerance (t) | 0.109 inch |
| Unstressed diameter (D) | 3.936 inch |
| Unstressed diameter tolerance (D) | 0.055 inch |
| Lug (L) | 0.35 inch |
| Beam (b) | 0.292 inch |
| h | 0.123 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 3.776 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.120 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.107 inch |
