SKU: N1300-250SS

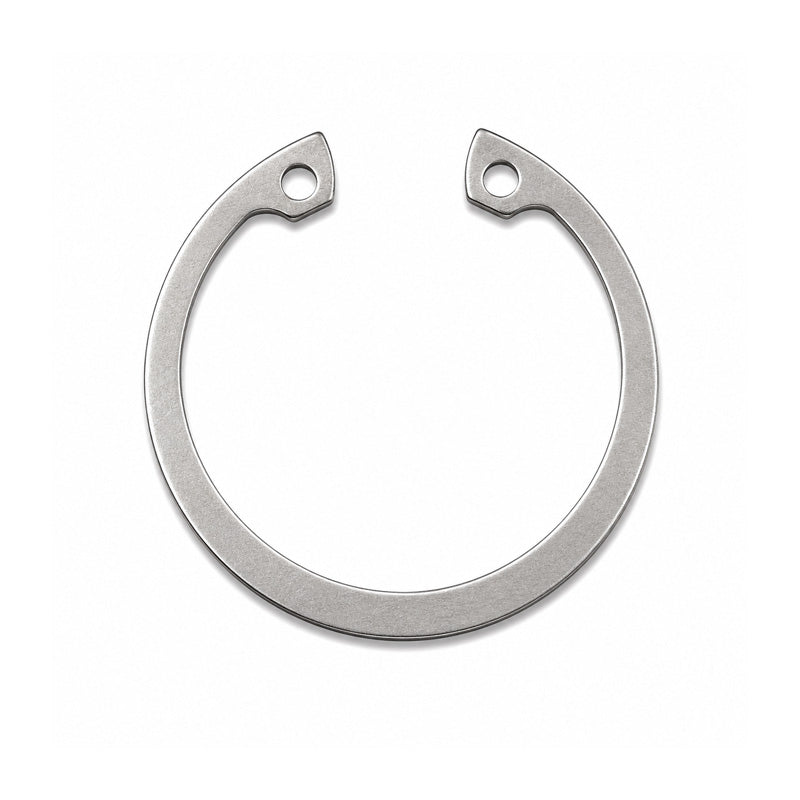

Stainless Steel Internal Circlip for 2.50 inch Bore Diameter Un-Sprung Diameter 2.775 inch
Stainless Steel Internal Circlip for 2.50 inch Bore Diameter Un-Sprung Diameter 2.775 inch
Equivalent to: N1300-250SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 70.49mm = 2.775 inch
- Material:
- Stainless Steel
- Thickness:
- 1.98mm = 0.078 (5/64) inch
- Groove Diameter:
- 67.26mm = 2.648 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 2.500 inch |
| Ring Thickness (t) | 0.078 inch |
| Thickness tolerance (t) | 0.078 inch |
| Unstressed diameter (D) | 2.775 inch |
| Unstressed diameter tolerance (D) | +0.040 / -0.030 inch |
| Lug (L) | 0.236 inch |
| Beam (b) | 0.21 inch |
| h | 0.108 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.648 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.086 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.074 inch |
