SKU: N1300-162SS

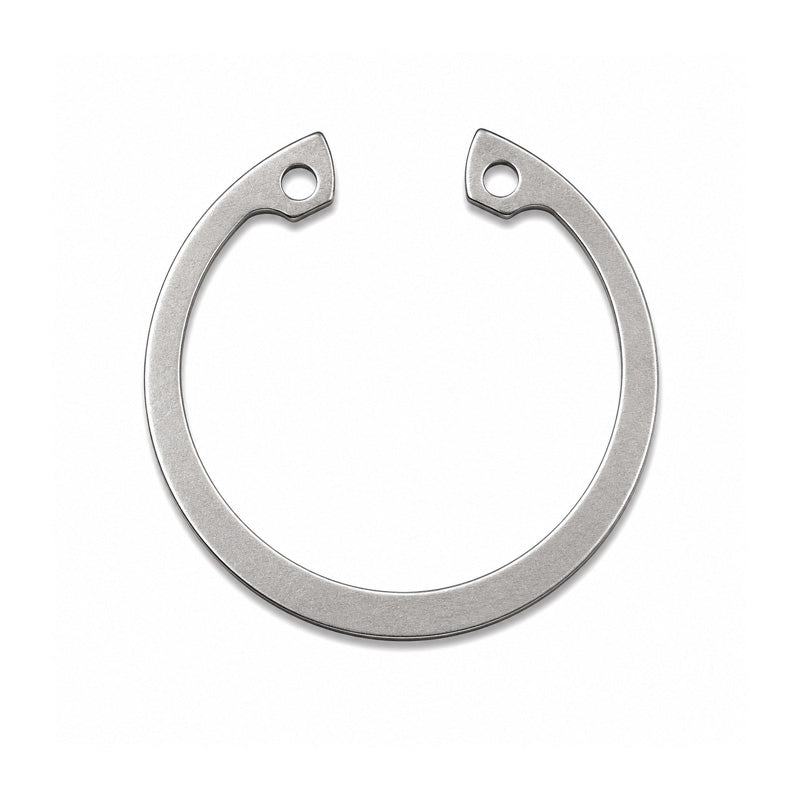

Stainless Steel Internal Circlip for 1.62 inch Bore Diameter Un-Sprung Diameter 1.804 inch
Stainless Steel Internal Circlip for 1.62 inch Bore Diameter Un-Sprung Diameter 1.804 inch
Equivalent to: N1300-162SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 45.82mm = 1.804 inch
- Material:
- Stainless Steel
- Thickness:
- 1.57mm = 0.062 inch
- Groove Diameter:
- 43.82mm = 1.725 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.625 inch |
| Ring Thickness (t) | 0.062 inch |
| Thickness tolerance (t) | 0.062 inch |
| Unstressed diameter (D) | 1.804 inch |
| Unstressed diameter tolerance (D) | +0.035 / -0.025 inch |
| Lug (L) | 0.205 inch |
| Beam (b) | 0.16 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.725 inch |
| Groove tolerance (G) | 0.005 inch |
| Minimum Groove Width (W) | 0.068 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.05 inch |
