SKU: N1300-106SS

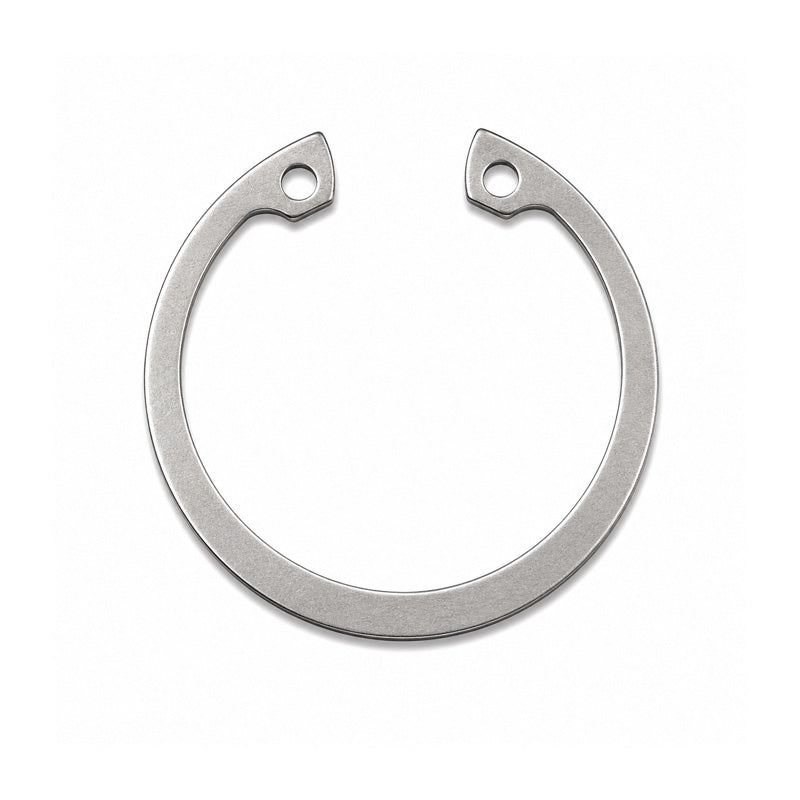

Stainless Steel Internal Circlip for 1.06 inch Bore Diameter Un-Sprung Diameter 1.180 inch
Stainless Steel Internal Circlip for 1.06 inch Bore Diameter Un-Sprung Diameter 1.180 inch
Equivalent to: N1300-106SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 26.99mm = 1.062 (1-1/16) inch
- Outside Diameter:
- 29.97mm = 1.18 inch
- Material:
- Stainless Steel
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 28.7mm = 1.13 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.062 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.05 inch |
| Unstressed diameter (D) | 1.180 inch |
| Unstressed diameter tolerance (D) | +0.025 / -0.020 inch |
| Lug (L) | 0.185 inch |
| Beam (b) | 0.110 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.130 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.034 inch |
