SKU: N032-SKF

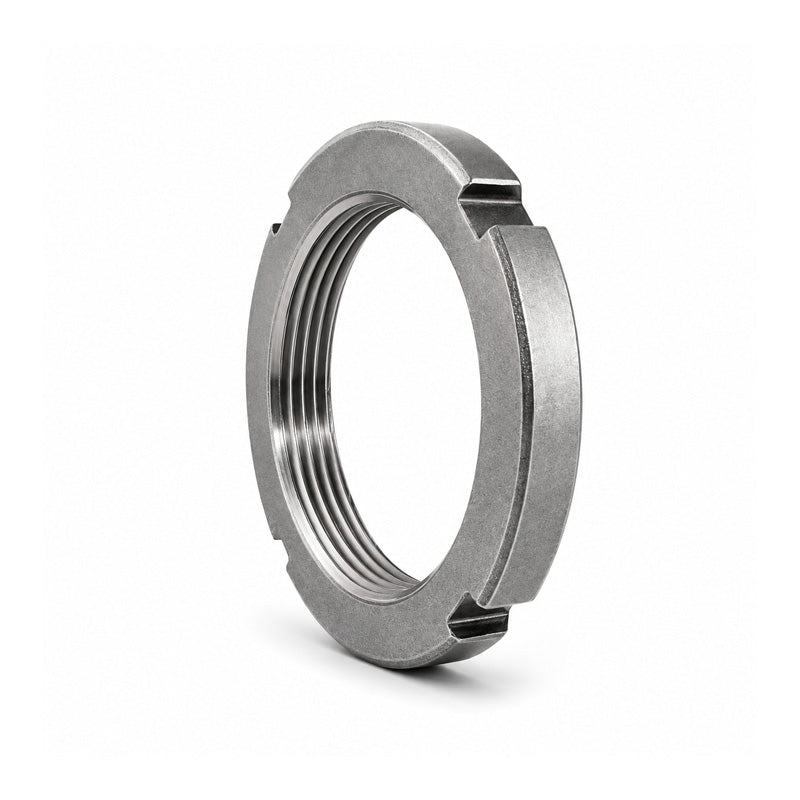

SKF N032 Lock Nut (Lock Washer Type) 6.284x7.094x7.505 inch
SKF N032 Lock Nut (Lock Washer Type) 6.284x7.094x7.505 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low-profile lock nuts are commonly used together with bearings in the 230 series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 6.284 inch
Technical
Technical
| G | 6.284 inch |
|---|---|
| Threads per inch | 8 |
| d<sub>1</sub> | 7.094 inch |
| d<sub>3</sub> max | 7.505 inch |
| B | 1.041 inch |
| b | 0.61 inch |
| h | 0.229 inch |
| Static axial load carrying capacity | 95544 lbf |
| Mass | 1.8144 kg |
| Associated spanner | TMFN23-30 |
| Associated locking device | W032 |
