SKU: N02-SKF

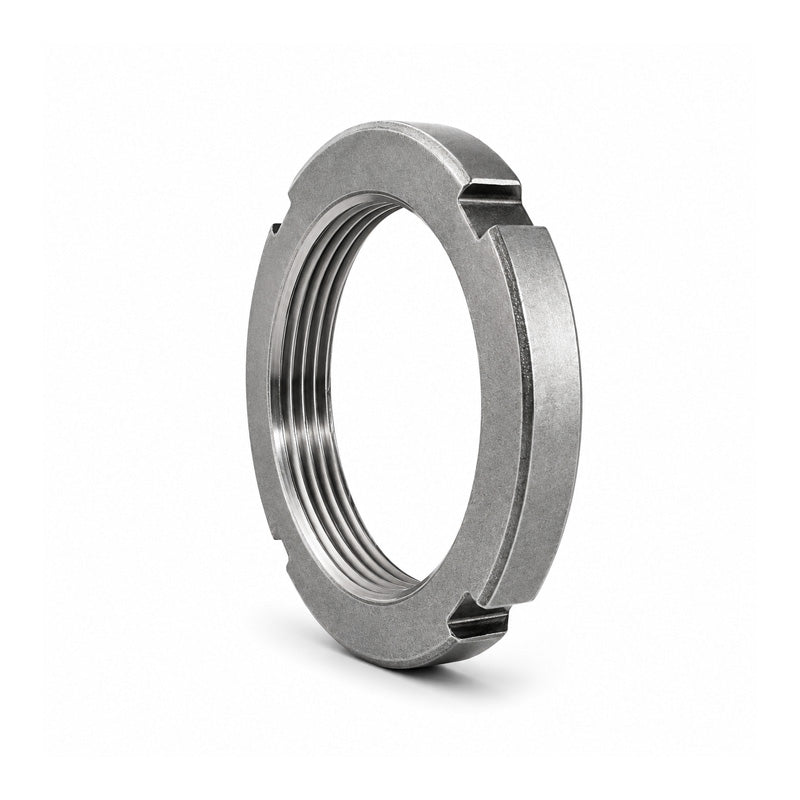

SKF N02 Lock Nut (Lock Washer Type) 0.586x0.813x1.005 inch
SKF N02 Lock Nut (Lock Washer Type) 0.586x0.813x1.005 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 0.586 inch
Technical
Technical
| G | 0.586 inch |
|---|---|
| Threads per inch | 32 |
| d<sub>1</sub> | 0.813 inch |
| d<sub>3</sub> max | 1.005 inch |
| B | 0.323 inch |
| b | 0.12 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 5845 lbf |
| Mass | 0.0191 kg |
| Associated spanner | HN2-3 |
| Associated locking device | W02 |
