SKU: MSC3.1/4-RHP

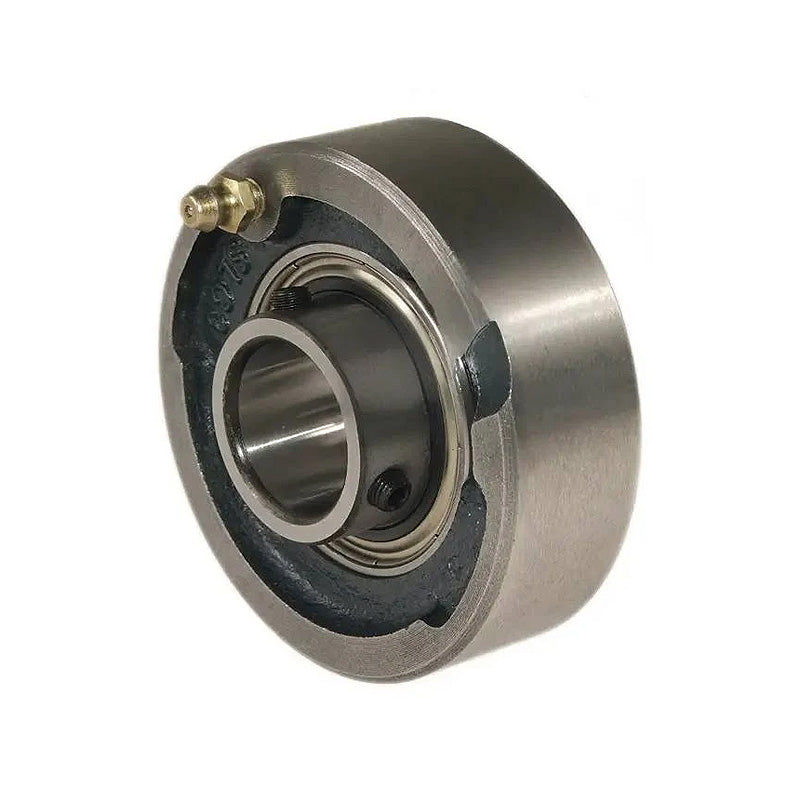

RHP MSC3-1/4 Cast Iron Cartridge Unit with 3-1/4 inch Bore Insert 188.94mm Outside Diameter

RHP MSC3-1/4 Cast Iron Cartridge Unit with 3-1/4 inch Bore Insert 188.94mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-1/4 inch
L 7.4385 inch
A 2.5 inch
A1 3.279 inch
B 3.375 inch
s 1.346 inch
d1 4.174
Dynamic load Cr 83000 N
Static load Cor 64000 N
Rex max speed 2000 rpm
Weight 9.3 kg
Insert <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
