SKU: MPL-M08-6C-DUN

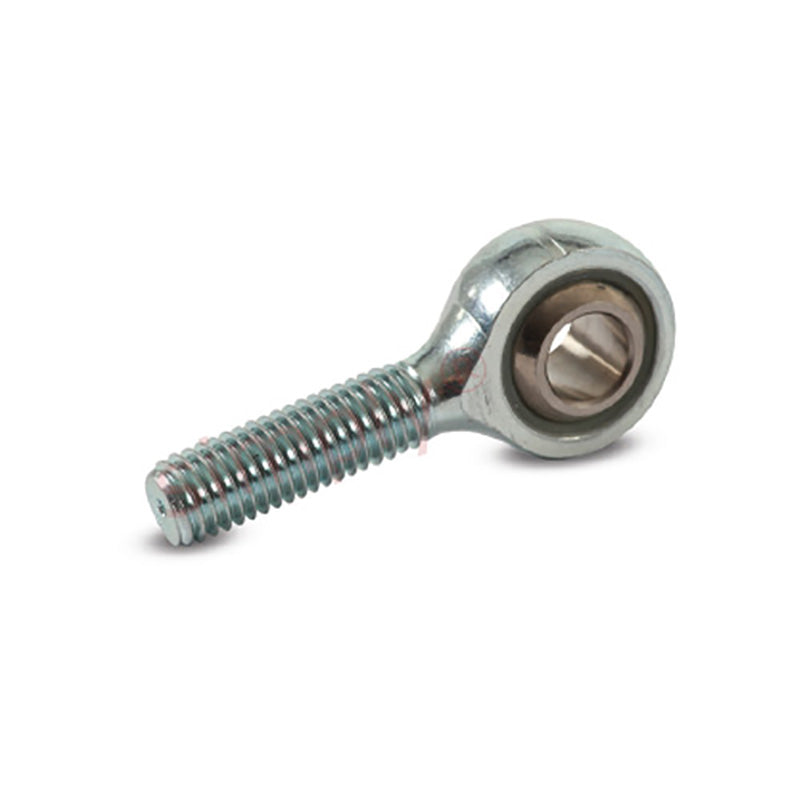

Dunlop MPL-M08-6C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1 Thread - Allow 7-10 Days
Dunlop MPL-M08-6C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1 Thread - Allow 7-10 Days
Regular price
€16,84
ex VAT
Regular price
Sale price
€16,84
ex VAT
In stock
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M8x1
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 6mm |
|---|---|
| Thread | M8x1 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 42mm |
| L2 | 25mm |
| O | 10.4mm |
| Static load | 12775 N |
