SKU: MP-M03-DUN

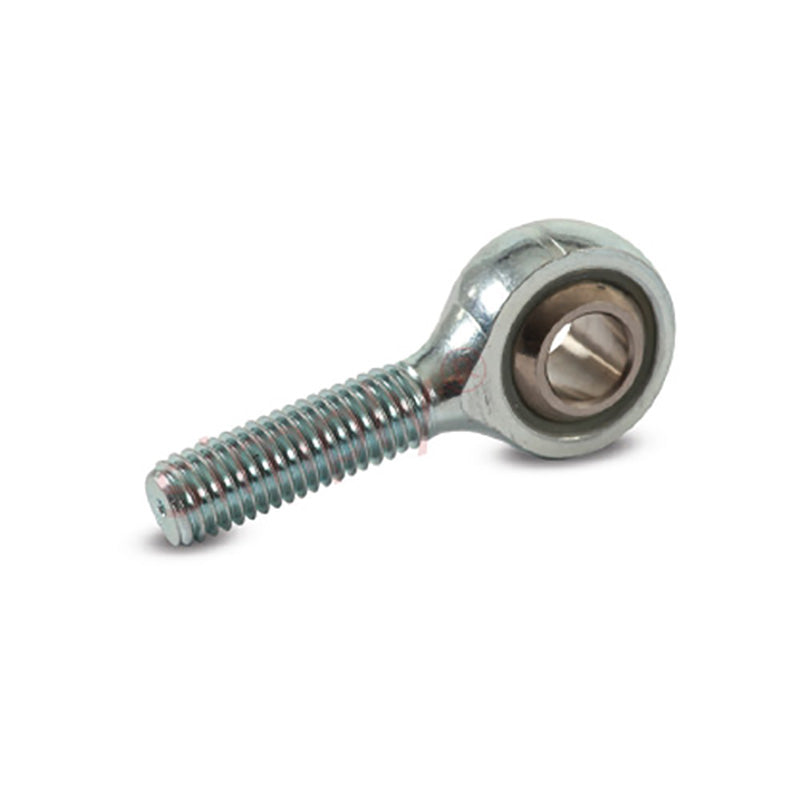

Dunlop MP-M03 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M3x0.5 Thread
Dunlop MP-M03 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M3x0.5 Thread
Regular price
€9,47
ex VAT
Regular price
Sale price
€9,47
ex VAT
In stock
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M3x0.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 3mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 3mm |
|---|---|
| Thread | M3x0.5 |
| W | 6mm |
| H | 4.5mm |
| D | 12mm |
| L1 | 27mm |
| L2 | 15mm |
| O | 5.2mm |
| Static load | 3040 N |
