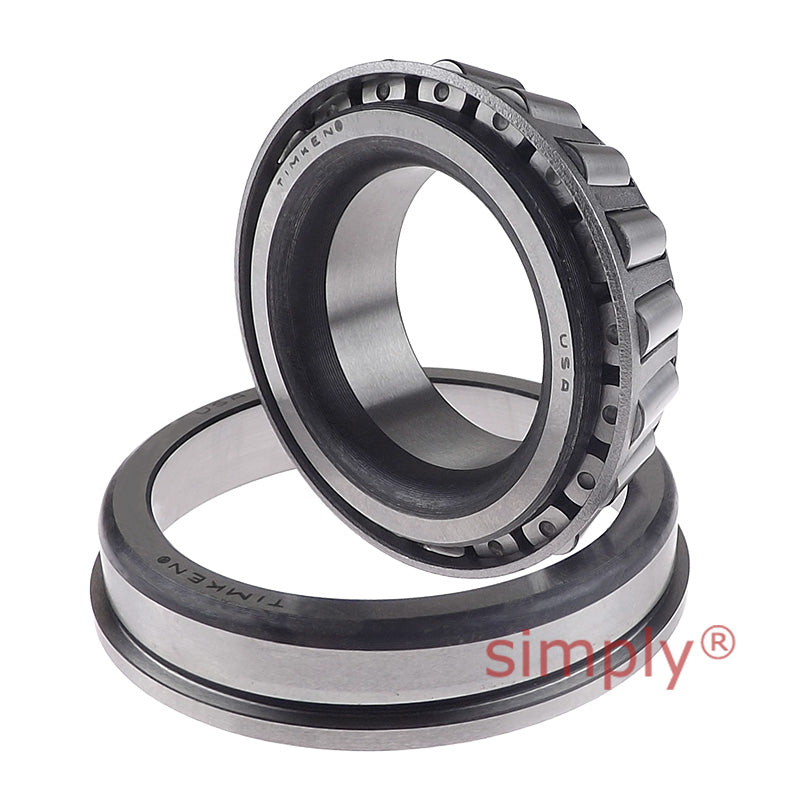

Timken M86649/M86611B TSF Single-Row Taper Roller Bearing 1.1875x2.5312x0.844 inch
Timken M86649/M86611B TSF Single-Row Taper Roller Bearing 1.1875x2.5312x0.844 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 64.29mm = 2.531 (2-17/32) inch
- Width:
- 21.44mm = 0.844 (27/32) inch
Technical
Technical
| d | 30.162mm = 1.1875 inch |
|---|---|
| D | 64.292mm = 2.5312 inch |
| T1 | 8.763mm = 0.345 inch |
| Dynamic (1) C1 | 55700N |
| Factors (5) e | 0.55 |
| Factors (5) Y | 1.1 |
| Dynamic (2) C90 | 14500N |
| Dynamic (2) Ca90 | 13500N |
| Factors (5) K | 1.07 |
| Static Co | 71700N |
| Bearing B | 21.433mm = 0.8438 inch |
| Bearing C | 16.67mm = 0.6563 inch |
| Bearing a(3) | -3.3mm = -0.13 inch |
| Bearing D1 | 70mm = 2.7559 inch |
| Bearing C2 | 4mm = 0.1575 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 38mm = 1.5 inch |
| Shaft backing shoulder diameter db | 41mm = 1.61 inch |
| Housing backing shoulder diameter Da | 63mm = 2.48 inch |
| G1 | 16.8 |
| G2 | 9.36 |
| Cg | 0.0736 |
