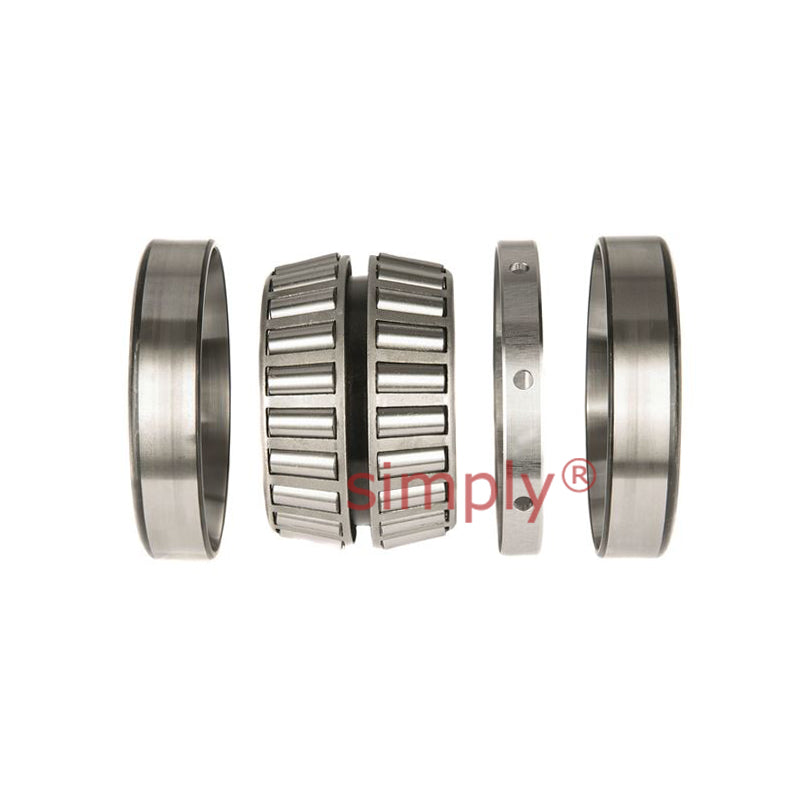

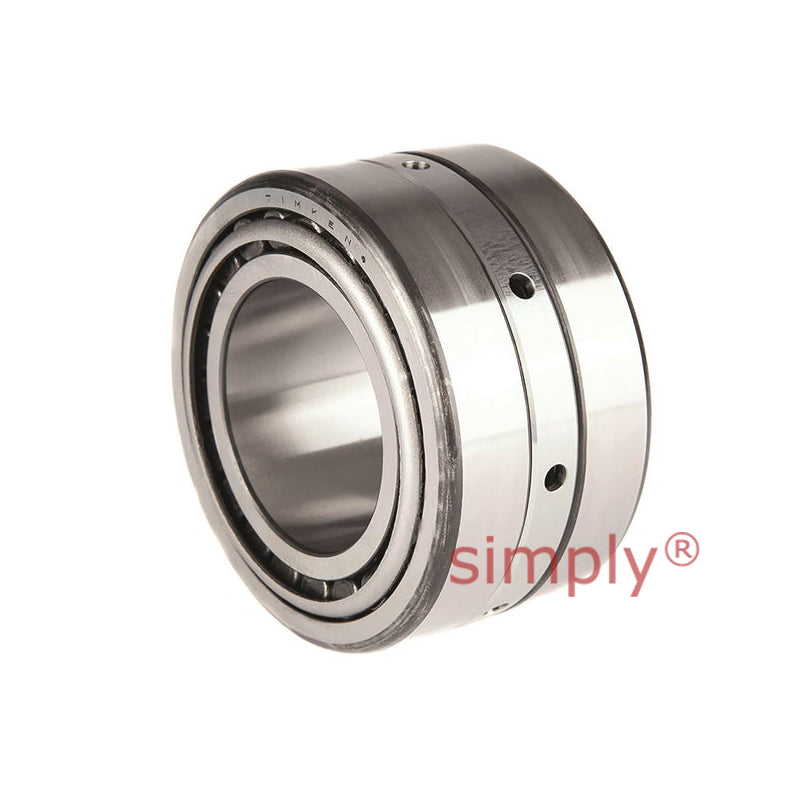

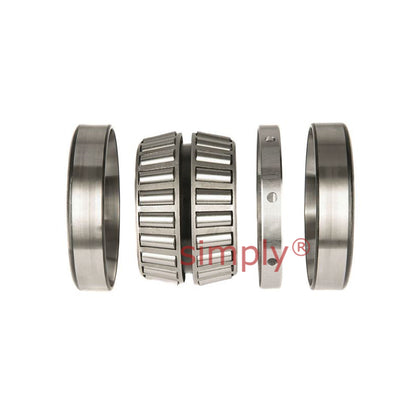

Timken M270449DA/M270410/M270410EA TDI Double Inner Race Taper Roller Bearing 17.7145x23.4232x7.0079x7.0079 inch
Timken M270449DA/M270410/M270410EA TDI Double Inner Race Taper Roller Bearing 17.7145x23.4232x7.0079x7.0079 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 449.95mm = 17.715 inch
- Outside Diameter:
- 594.95mm = 23.423 inch
- Width:
- 178mm = 7.008 inch
Technical
Technical
| d | 449.949mm = 17.7145 inch |
|---|---|
| D | 594.949mm = 23.4232 inch |
| T | 178mm = 7.0079 inch |
| C | 178mm = 7.0079 inch |
| Dynamic (1) C1 | 3400000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 507000N |
| Dynamic (2) Ca90 | 289000N |
| Dynamic (2) C90(2) | 882000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 3mm = 0.12 inch |
| Shaft backing shoulder diameter da | 474mm = 18.66 inch |
| Housing max shaft fillet radius r (3) | 6mm = 0.24 inch |
| Housing backing shoulder diameter Db | 561mm = 22.09 inch |
| G1 | 6020 |
| G2 | 562 |
| Cg | 0.2343 |
