SKU: M268749/M268710CD/M268749XE-TIM

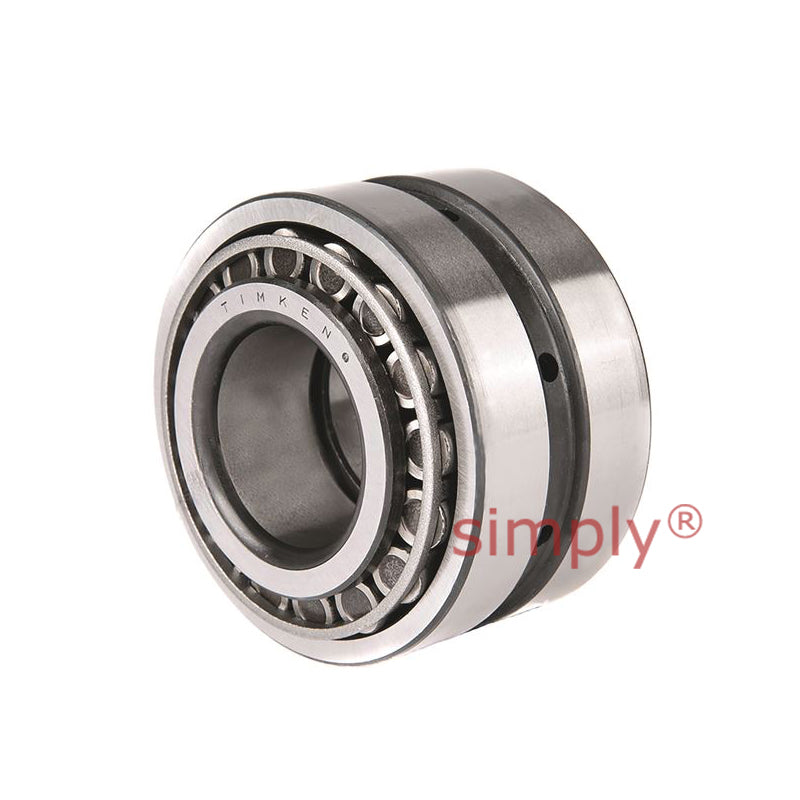

Timken M268749/M268710CD/M268749XE TDO Double Outer Race Taper Roller Bearing 16.375x23.25x9.625x7.625 inch
Timken M268749/M268710CD/M268749XE TDO Double Outer Race Taper Roller Bearing 16.375x23.25x9.625x7.625 inch
Out of stock
Description
Description

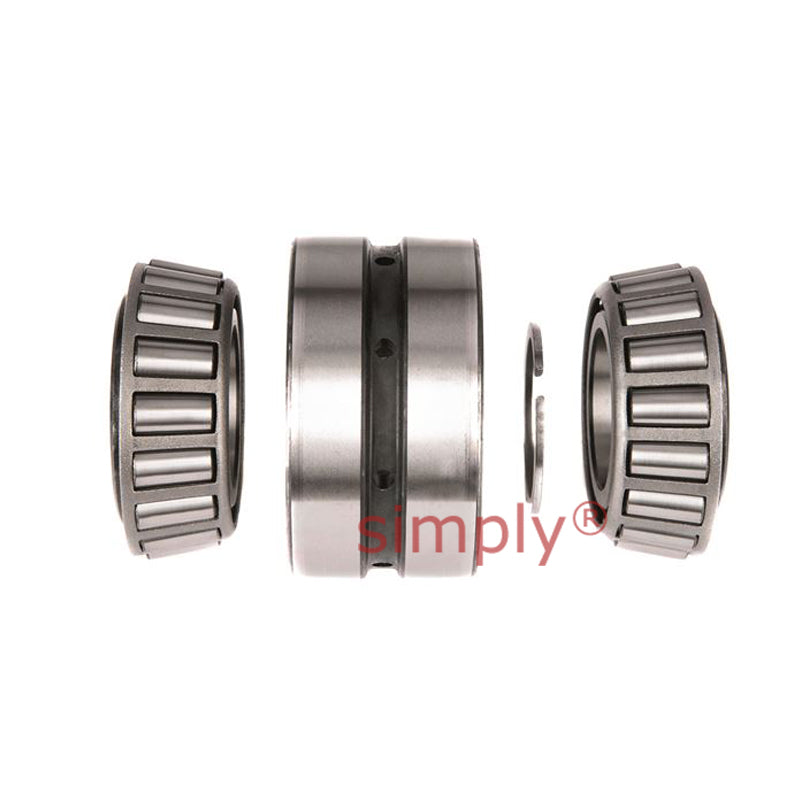

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 415.93mm = 16.375 inch
- Outside Diameter:
- 590.55mm = 23.25 inch
- Width:
- 244.48mm = 9.625 inch
Technical
Technical
| d | 415.925mm = 16.375 inch |
|---|---|
| D | 590.55mm = 23.25 inch |
| T | 244.475mm = 9.625 inch |
| C | 193.675mm = 7.625 inch |
| Dynamic (1) C1 | 4250000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 633000N |
| Dynamic (2) Ca90 | 360000N |
| Dynamic (2) C90(2) | 1100000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 451mm = 17.76 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 562mm = 22.13 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 14.2mm = 0.56 inch |
| G1 | 5750 |
| G2 | 421 |
| Cg | 0.2319 |
