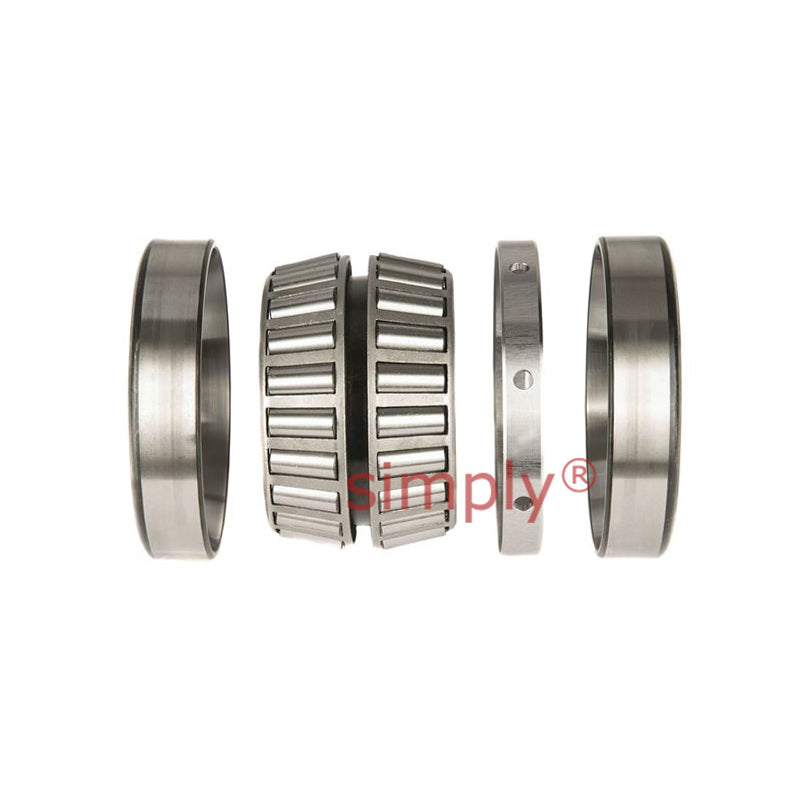

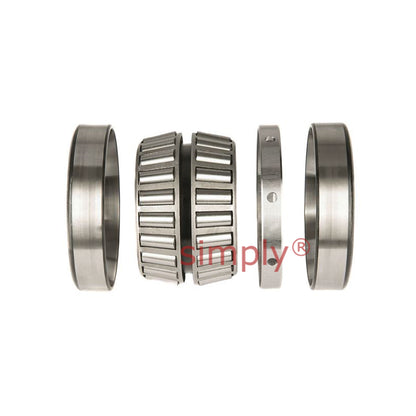

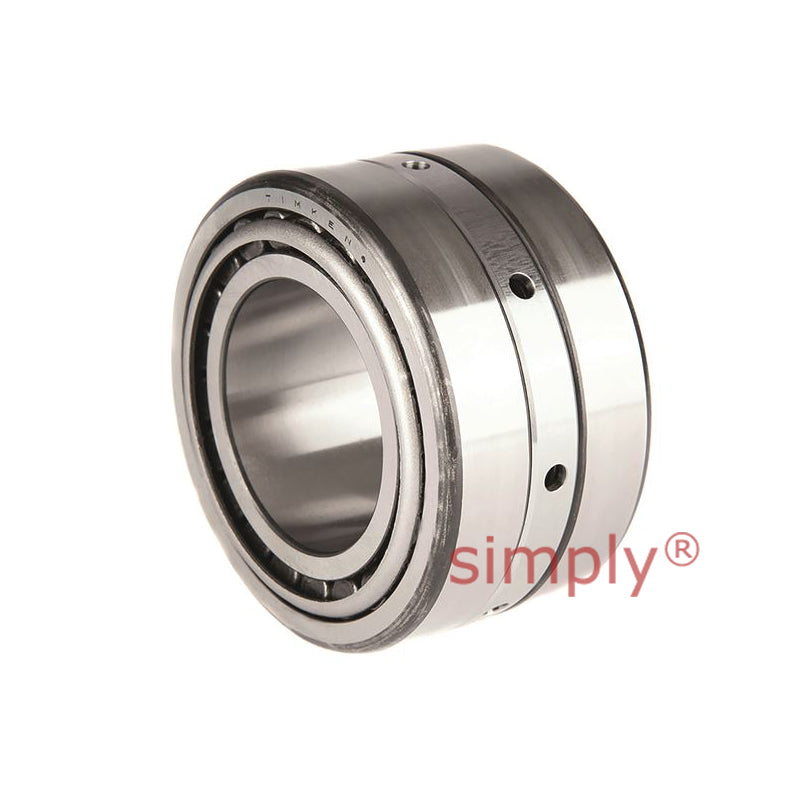

Timken M224749D/M224710/M224710EA TDI Double Inner Race Taper Roller Bearing 4.75x6.875x2.6251x2.6875 inch
Timken M224749D/M224710/M224710EA TDI Double Inner Race Taper Roller Bearing 4.75x6.875x2.6251x2.6875 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 120.65mm = 4.75 (4-3/4) inch
- Outside Diameter:
- 174.63mm = 6.875 (6-7/8) inch
- Width:
- 66.68mm = 2.625 (2-5/8) inch
Technical
Technical
| d | 120.65mm = 4.75 inch |
|---|---|
| D | 174.625mm = 6.875 inch |
| T | 66.678mm = 2.6251 inch |
| C | 68.262mm = 2.6875 inch |
| Dynamic (1) C1 | 394000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 58700N |
| Dynamic (2) Ca90 | 33400N |
| Dynamic (2) C90(2) | 102000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 129mm = 5.08 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 162mm = 6.38 inch |
| G1 | 279 |
| G2 | 86.6 |
| Cg | 0.1575 |
