SKU: M-UELFL212-205D1-NTN

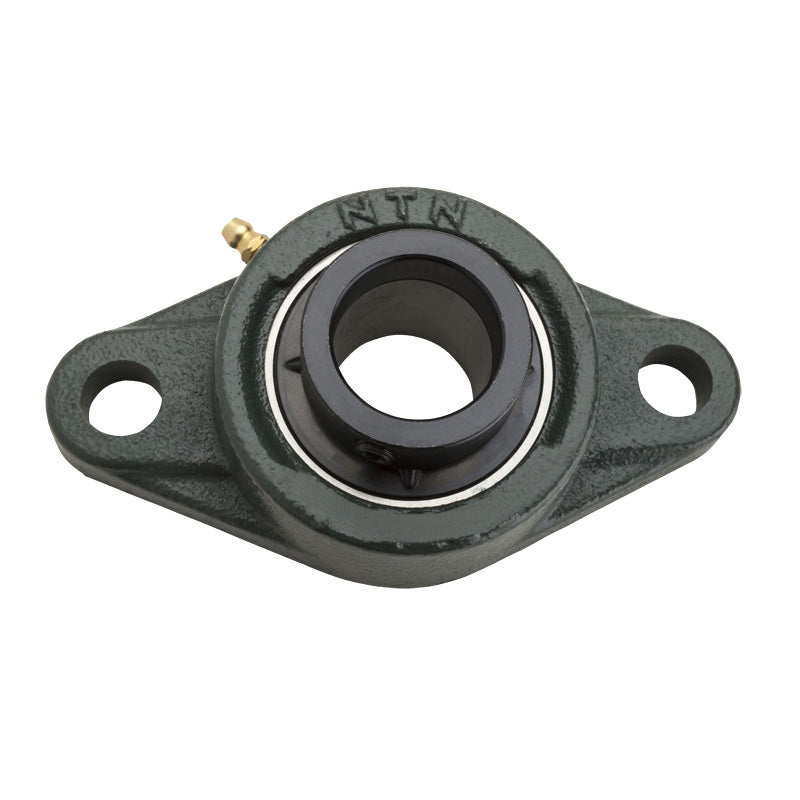

NTN M-UELFL212-205D1 Imperial Two Bolt Cast Iron Oval Housing with 2-5/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL212-205D1 Imperial Two Bolt Cast Iron Oval Housing with 2-5/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 58.73mm = 2.312 (2-5/16) inch
- Style:
- UELFL
- Bolt Hole Centres:
- 7-61/64 inch
Technical
Technical
| Shaft diameter | 2-5/16 inch |
|---|---|
| H | 9-27/32 inch |
| J | 7-61/64 inch |
| A<sub>2</sub> | 1-9/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-7/8 inch |
| N | 29/32 inch |
| L | 5-1/2 inch |
| A<sub>0</sub> | 2-63/64 inch |
| B<sub>1</sub> | 3.063 inch |
| S | 1.219 inch |
| F min. | 3-3/16 inch |
| Fixing bolt | 3/4 inch |
| Mass | 9 lbs |
