SKU: M-UELFL204-012D1-NTN

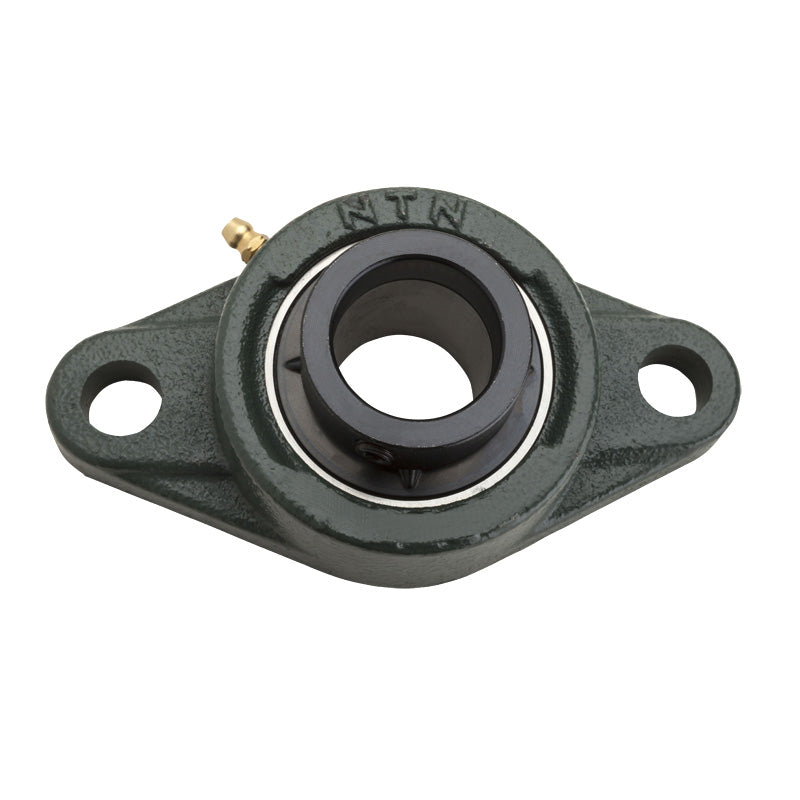

NTN M-UELFL204-012D1 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Eccentric Collar Insert - Allow 2-3 Days

NTN M-UELFL204-012D1 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Eccentric Collar Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft diameter 3/4 inch
H 4-7/16 inch
J 3-35/64 inch
A<sub>2</sub> 19/32 inch
A<sub>1</sub> 7/16 inch
A 1 inch
N 15/32 inch
L 2-3/8 inch
A<sub>0</sub> 1-41/64 inch
B<sub>1</sub> 1.72 inch
S 0.673 inch
F min. 1-11/32 inch
Fixing bolt 3/8 inch
Mass 1.1 lbs
