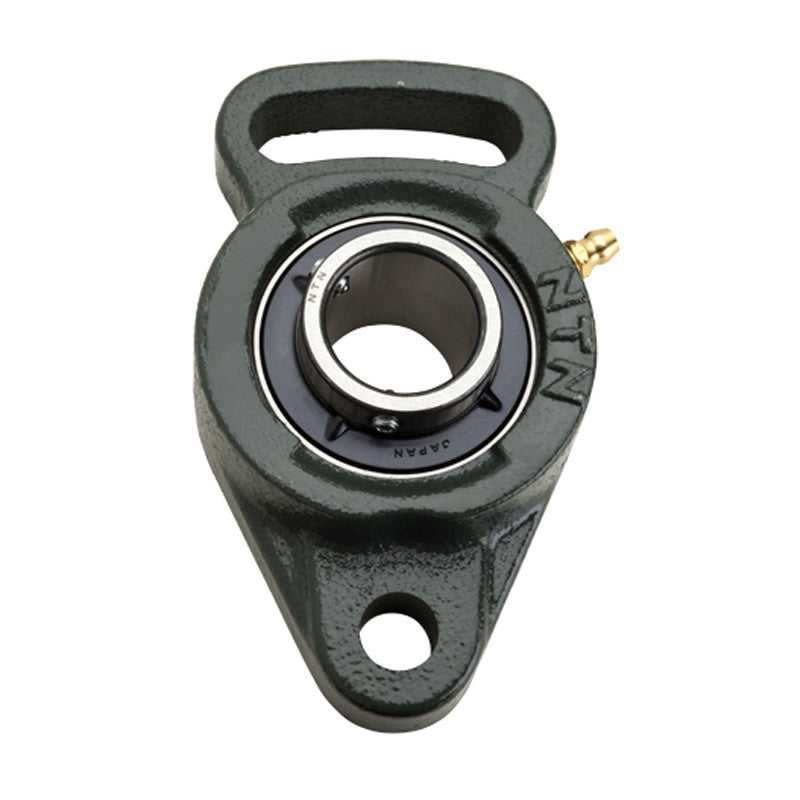

NTN M-UCFA211D1 Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
NTN M-UCFA211D1 Metric Cast Iron Adjustable Flange Unit with 55mm Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFA
- Bolt Hole Centres:
- 182mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| H | 216mm |
| J | 182mm |
| A<sub>2</sub> | 26mm |
| A<sub>1</sub> | 20mm |
| A | 43mm |
| N | 17mm |
| N<sub>1</sub> | 85mm |
| L | 130mm |
| L<sub>1</sub> | 102mm |
| A<sub>0</sub> | 59.4mm |
| B | 55.6mm |
| S | 22.2mm |
| Fixing bolt | M14 |
| Mass | 2.9 kg |
