SKU: M-C-UCFL216-301D1-NTN

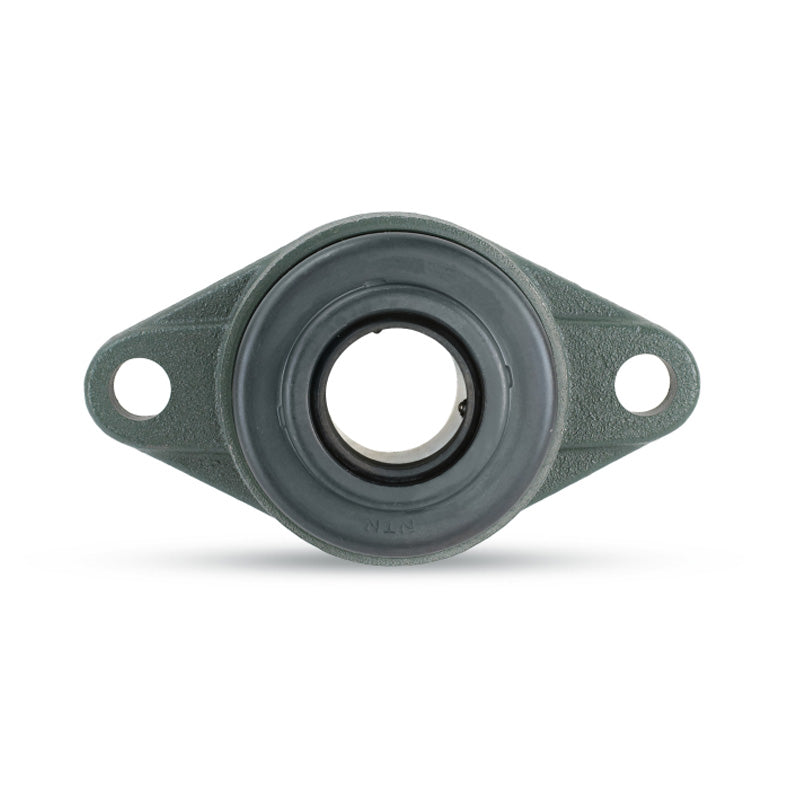

NTN M-C-UCFL216-301D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCFL216-301D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 77.79mm = 3.063 (3-1/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 9-11/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-1/16 inch |
| H | 11-13/32 inch |
| J | 9-11/64 inch |
| A<sub>2</sub> | 1-11/32 inch |
| A<sub>1</sub> | 7/8 inch |
| A | 2-9/32 inch |
| N | 63/64 inch |
| L | 7-3/32 inch |
| B | 3.252 inch |
| S | 1.311 inch |
| A<sub>5</sub> | 4-3/16 inch |
| L<sub>1</sub> | 7-7/32 inch |
| L<sub>2</sub> | 3-17/32 inch |
| Fixing bolt | 7/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 19 lbs |
