SKU: M-AELPF208-109-NTN

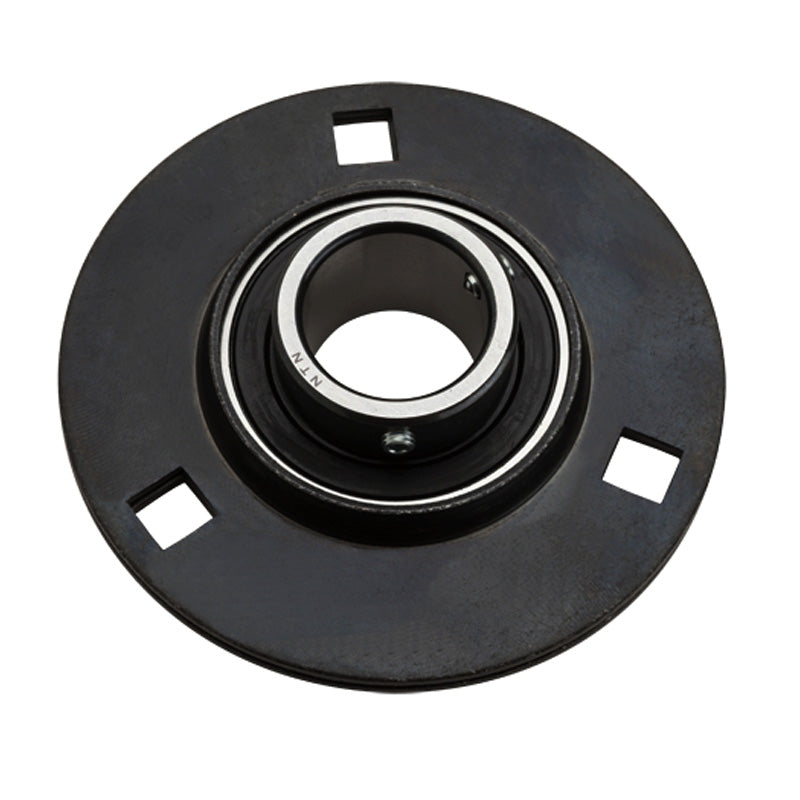

NTN M-AELPF208-109 Round 4 Bolt Pressed Steel Bearing Housing with 1-9/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN M-AELPF208-109 Round 4 Bolt Pressed Steel Bearing Housing with 1-9/16 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
|
AELPF200 Series 4 Bolt Pressed Steel Round Housings: Of galvanized steel construction these housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. Benefits: Cost-effective housing assembly |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- AELPF
- Pitch Circle Diameter:
- 4-11/16 inch
Technical
Technical

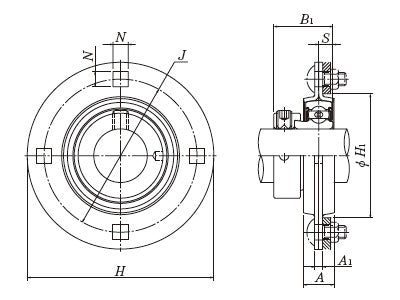

| --- | Dimensions |
|---|---|
| Shaft diameter | 1-9/16 inch |
| H | 5-13/16 inch |
| J | 4-11/16 inch |
| A<sub>1</sub> | 0.268 inch |
| N | 17/32 inch |
| A | 13/16 inch |
| B<sub>1</sub> | 1.72 inch |
| S | 0.433 inch |
| H<sub>1</sub> min | 3-37/64 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Max load recommended radial | 1500 lbf |
| Max load recommended axial | 750 lbf |
| --- | Unit information |
| Mass | 3.1 lbs |
