SKU: LPB15EC-RHP

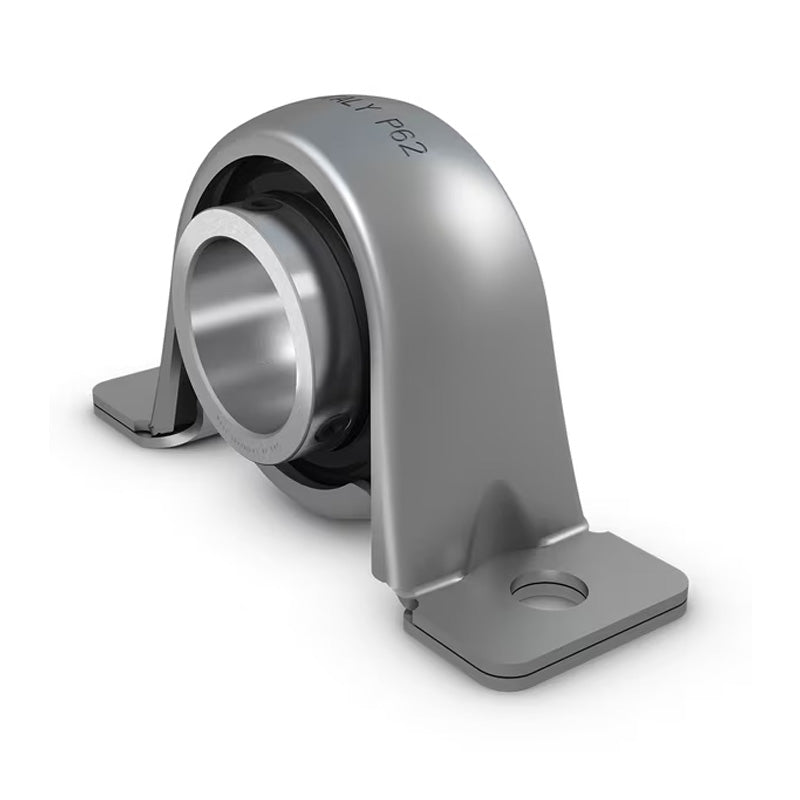

RHP LPB15EC 15mm Bore 2 Bolt Pressed Steel Pillow Housing Bearing
RHP LPB15EC 15mm Bore 2 Bolt Pressed Steel Pillow Housing Bearing
Out of stock
Description
Description
|
RHP LBP - EC Type 2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied flat back sealed bearing insert has an eccentric collar and grub screw for securing to the shaft. Once assembled the bearing remains reasonably rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Style:
- LPB
- Bolt Hole Centres:
- 68mm
Technical
Technical

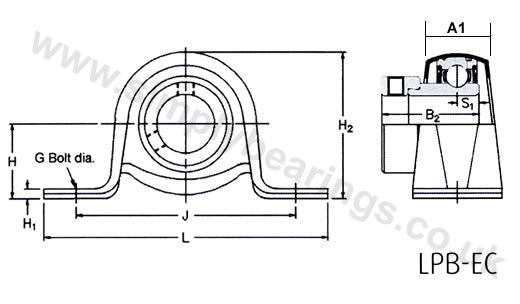

| Bore | 15mm |
|---|---|
| L | 85.7mm |
| H | 22.2mm |
| H1 | 2.4mm |
| H2 | 43.2mm |
| J | 68mm |
| G | 8mm |
| A | 25.4mm |
| A1 | 15.9mm |
| B | 27.38mm |
| B2 | 28.54mm |
| s | 11.55mm |
| s1 | 6.55mm |
| d1 | 24.21mm |
| d2 | 28.58mm |
| Max radial housing load | 1330 N |
| Rec max speed | 3000 rpm |
| Weight | 0.2 kg |
| Insert | 1017-15 |
| Casting group | 1 |
