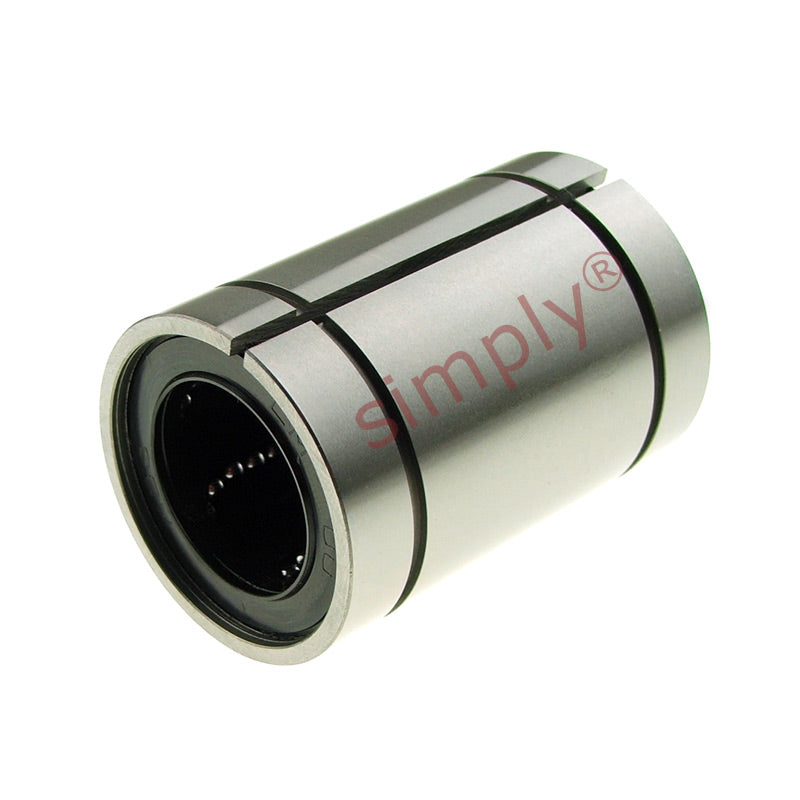

LMB4UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.25x0.5x0.75 inch

LMB4UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.25x0.5x0.75 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Inside Diameter dr 0.25 inch Tol - 0 to + 6µm
Outside Diameter D 0.5 inch Tol - 0 to + 11µm
Length L 0.75 inch Tol - 0 to + 200µm
W 0.039 inch
D1 0.4687 inch
B 0.511 inch
h 0.004 inch
Eccentricity 8 to 12µm
Dynamic load C 21 kgf
Static load C<sub>o</sub> 27 kgf
Weight 10 g
Number of ball rows -
Tolerances dr & D Apply to closed type only
