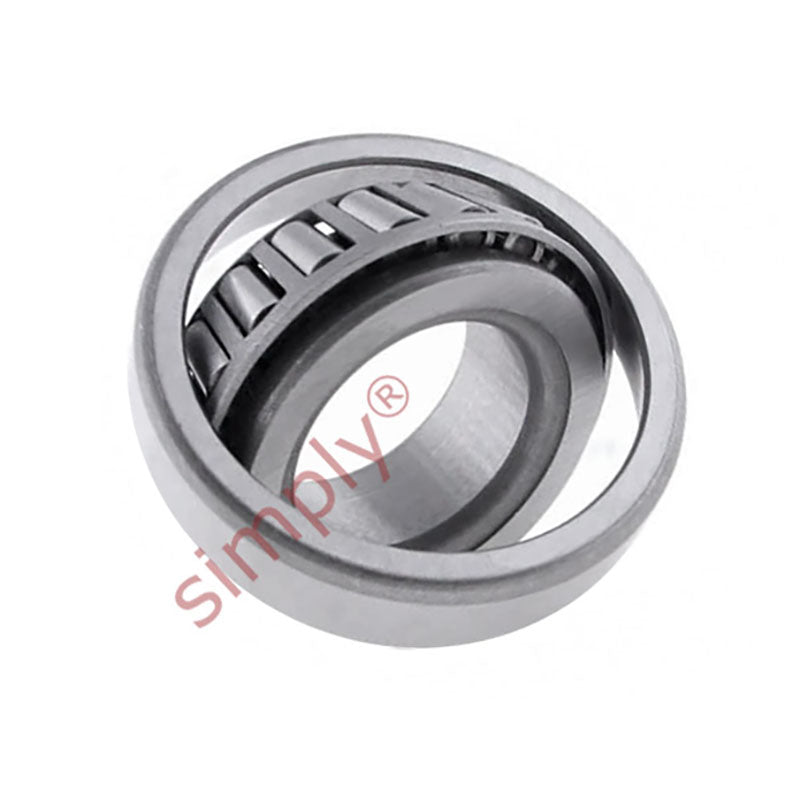

SKF LM739749/710/VE174 Imperial Taper Roller Bearing 7.75x10.125x1.5625 inches

Name: SKF LM739749/710/VE174 Imperial Taper Roller Bearing 7.75x10.125x1.5625 inches
Brand: SKF
SKU: LM739749/710/VE174-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 196.85mm = 7.75 (7-3/4) inch
Outside Diameter:: 257.18mm = 10.125 (10-1/8) inch
Width:: 39.69mm = 1.563 (1-9/16) inch
Seals / Shields:: None

Technical

d	196.85mm
D	257.175mm
T	39.688mm
Dynamic load	275 kN
Static load	655 kN
Fatigue load limit Pu	58.5 kN
Reference speed	1600 rpm
Limiting speed	2400 rpm
Weight	5.3 kg
d1	229mm
B	39.688mm
C	30.162mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	50mm
da max	236mm
db min	210mm
Da min	236mm
Da max	245mm
Db min	247mm
Ca min	8mm
Cb min	9.5mm
ra max	3mm
rb max	3mm
Calculation factor e	0.44
Calculation factor Y	1.35
Calculation factor Y0	0.8
