SKU: LM48548L/10.RS-FAG

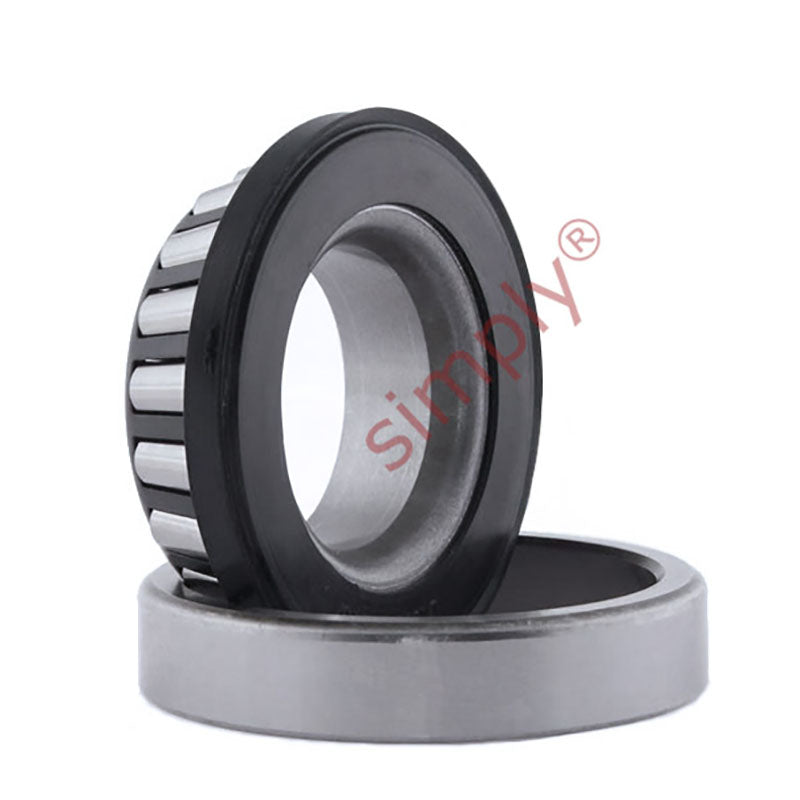

FAG LM48548L/LM48510L with Seal Imperial Taper Roller Bearing Cup and Cone Set 1.375x2.5625x0.71 inch
FAG LM48548L/LM48510L with Seal Imperial Taper Roller Bearing Cup and Cone Set 1.375x2.5625x0.71 inch
Out of stock
Description
Description
|
Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads. Supplied as a two part set consisting of the cone inner part where the rollers and cage are located and the outer cup part. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Width:
- 18.03mm = 0.71 inch
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Cup | LM48510L with Seal |
|---|---|
| Cone | LM48548L |
| I/D | 1.375 inch (34.93mm) |
| O/D | 2.5625 inch (65.09mm) |
| Cone Width | 0.72 inch (18.29mm) |
| Cup Width | 0.55 inch (13.97mm) |
| Bearing Width | 0.71 inch (18.03mm) |
