SKU: LM283649/610/HA1-SKF

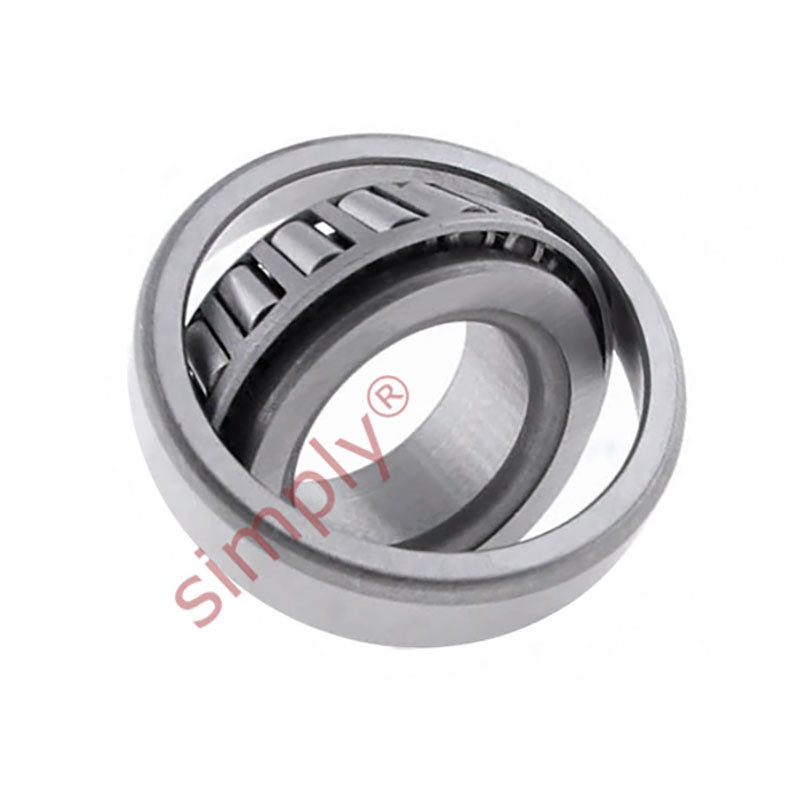

SKF LM283649/610/HA1 Imperial Taper Roller Bearing 29.5x39x6.2795 inches

Name: SKF LM283649/610/HA1 Imperial Taper Roller Bearing 29.5x39x6.2795 inches
Brand: SKF
SKU: LM283649/610/HA1-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 749.3mm = 29.5 (29-1/2) inch
Outside Diameter:: 990.6mm = 39 inch
Width:: 159.5mm = 6.28 inch
Seals / Shields:: None

Technical

d	749.3mm
D	990.6mm
T	159.5mm
Dynamic load	4570 kN
Static load	12000 kN
Fatigue load limit Pu	750 kN
Reference speed	340 rpm
Limiting speed	500 rpm
Weight	330 kg
d1	858mm
B	160.338mm
C	123mm
r1r2 min	6.4mm
r3r4 min	6.4mm
a	165mm
da max	793mm
db min	781mm
Da min	910mm
Da max	958mm
Db min	953mm
Ca min	22mm
Cb min	36.6mm
ra max	6mm
rb max	6mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
