SKU: LJ.2.NR.EU

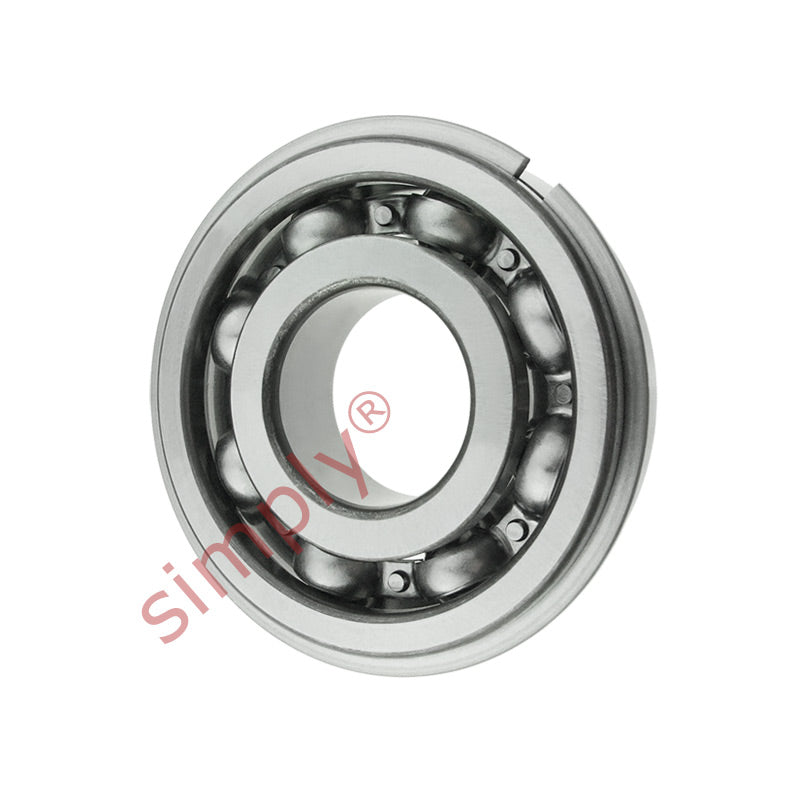

LJ2NR Imperial Open Snap Ring Bearing 2x4x13/16 inch
LJ2NR Imperial Open Snap Ring Bearing 2x4x13/16 inch
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 20.64mm = 0.813 (13/16) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring

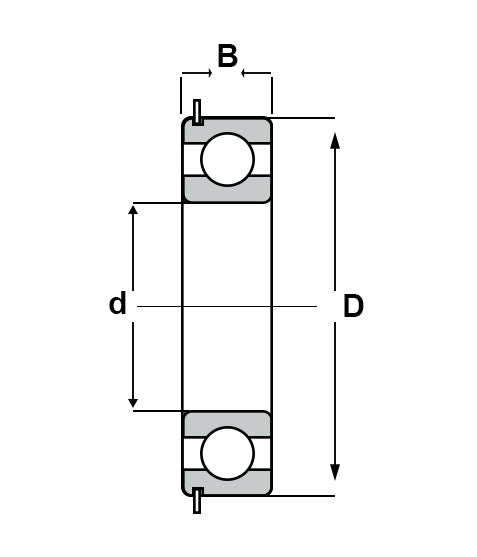

Technical
Technical
| Bore | 2 inch |
|---|---|
| Outside Diameter | 4 inch |
| Width | 0.8125 inch |
| Weight | 0.5 kg |
