SKU: KXO08-PP-INA

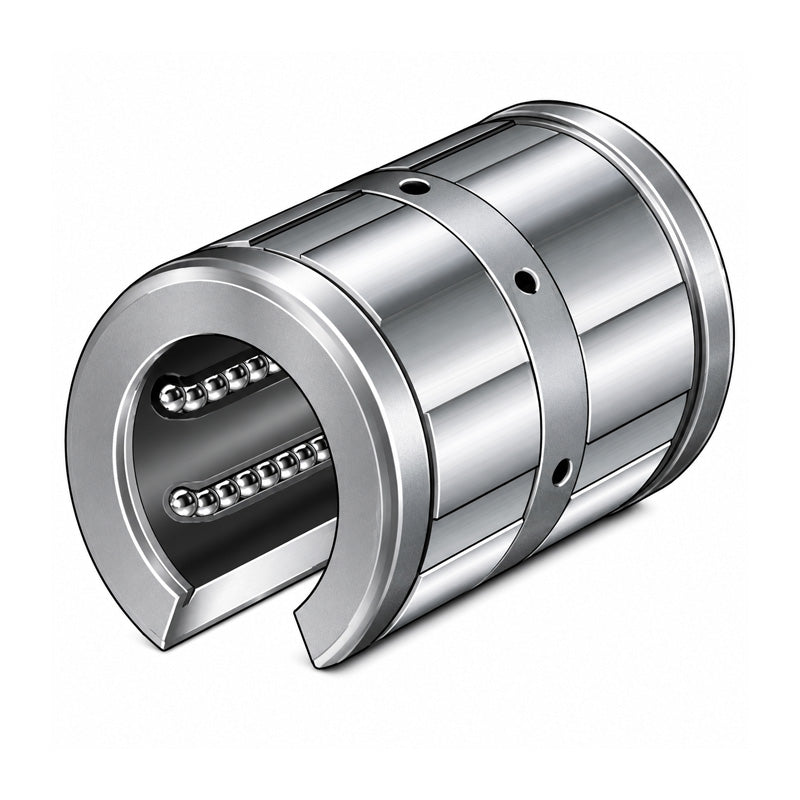

INA KXO08PP Imperial Open Self Aligning Linear Ball Bushing with Contact Seals 1/2x7/8x1-1/4 inch
INA KXO08PP Imperial Open Self Aligning Linear Ball Bushing with Contact Seals 1/2x7/8x1-1/4 inch
Out of stock
Description
Description
|
INA KXO..-PP Imperial Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KXO linear ball bearings can compensate misalignment of up to ±40 deg. This bearing has a segment cutout and is intended for supported shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 7/8 inch |
| C | 1-1/4 inch |
| Number of rows of balls | 8 |
| C1 | 1.032 inch |
| d1 | 0.136 inch |
| S | 0.625 inch |
| α | 60° |
| Mass | 0.033 lbs |
| Basic dynamic load rating C | 260 lbf |
| Basic static load rating C0 | 190 lbf |
