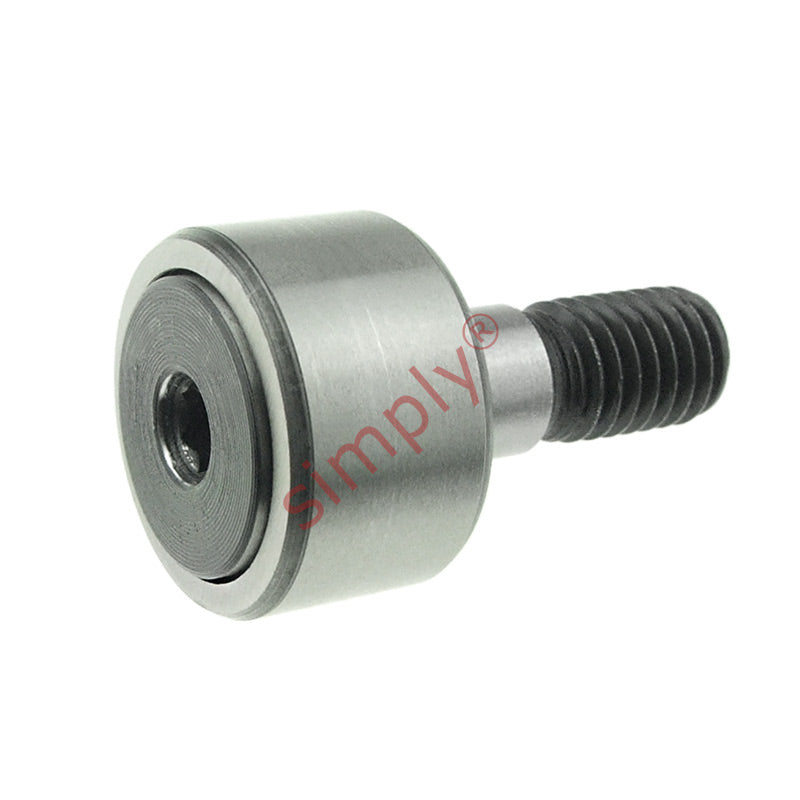

Budget KR35 Crowned Cam Follower 35x18x16 M16x1.5 Thread
Budget KR35 Crowned Cam Follower 35x18x16 M16x1.5 Thread
Out of stock
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 35mm
- Width:
- 18mm
- Pitch:
- M16x1.5
Technical
Technical
| D | 35mm |
|---|---|
| C | 18mm |
| d (Stud Diameter) | 16mm |
| B | 52mm |
| B1 | 32.5mm |
| B2 | 8mm |
| C1 | 0.8mm |
| d1 | 27mm |
| G | M16x1.5 |
| G1 | 17mm |
| M | 6mm |
| M1 | 3mm |
| r min | 0.6mm |
| Dynamic load | 9520 N |
| Static load | 13700 N |
| Fatigue load limit Pu | 1560 N |
| Radial dynamic load | 11400 N |
| Radial static load | 16300 N |
| Speed rating | 3600 rpm |
| Weight | 170 g |
